Section 3: Operation and Use
Operation and Use
YES

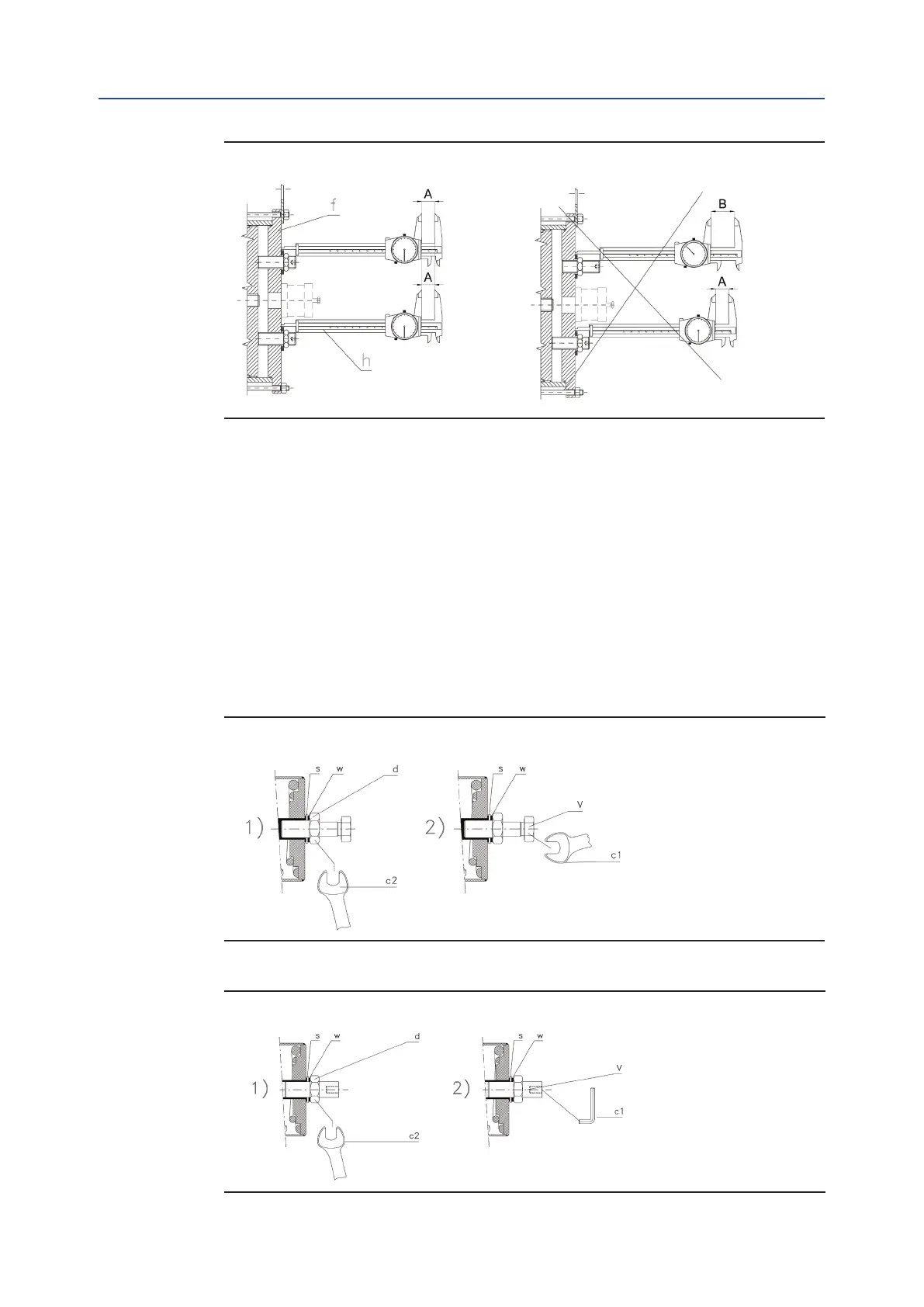

Figure 19
6. Reduce or stop cylinder supply to verify the angular stroke.
7. Repeat operation until the required angular stroke is attained.
8. Tighten the two lock nuts (d).
3.5.3 Stop Screw Screwed on the End Flange of Spring Container
For the adjustment of the travel stop screw proceed as follows:
(see Figures 20 and 21)
NO
Figure 20 Spring Cartridge Model: From 006 to 150
Figure 21 Spring Cartridge Model: From 200 to 15600
