BIFFI ALGAS-QA EAC User Manual

41
Installation, Operation and Maintenance Manual
MAN616_EAC Rev. 5 July 2020
Section 7: Layouts and Sectional Drawings
Layouts and Sectional Drawings
Section 7: Layouts and Sectional Drawings
7.1 Parts List for Maintenance and Replacing Procedure
Item Qty Description Material
1 4 O - ring * Fluorosilicon rubber
2 2 Yoke bushing Bronze
3 2 Retainer ring Stainless steel
4 1 Housing Carbon steel
5 1 Guide bar Alloy steel
6 1 Yoke Carbon steel
7 1 Cover gasket * SBR + cellulose + llers
8 1 Guide block Carbon steel
9 1 Bushing STEEL + BZ + Teon
10 2 Sliding block Bronze
11 1 Vent valve * Stainless steel
12 12 Screw Carbon steel
13 1 Cover Carbon steel
14 1 Guide block pin Alloy steel
NOTE:
* recommended spare parts

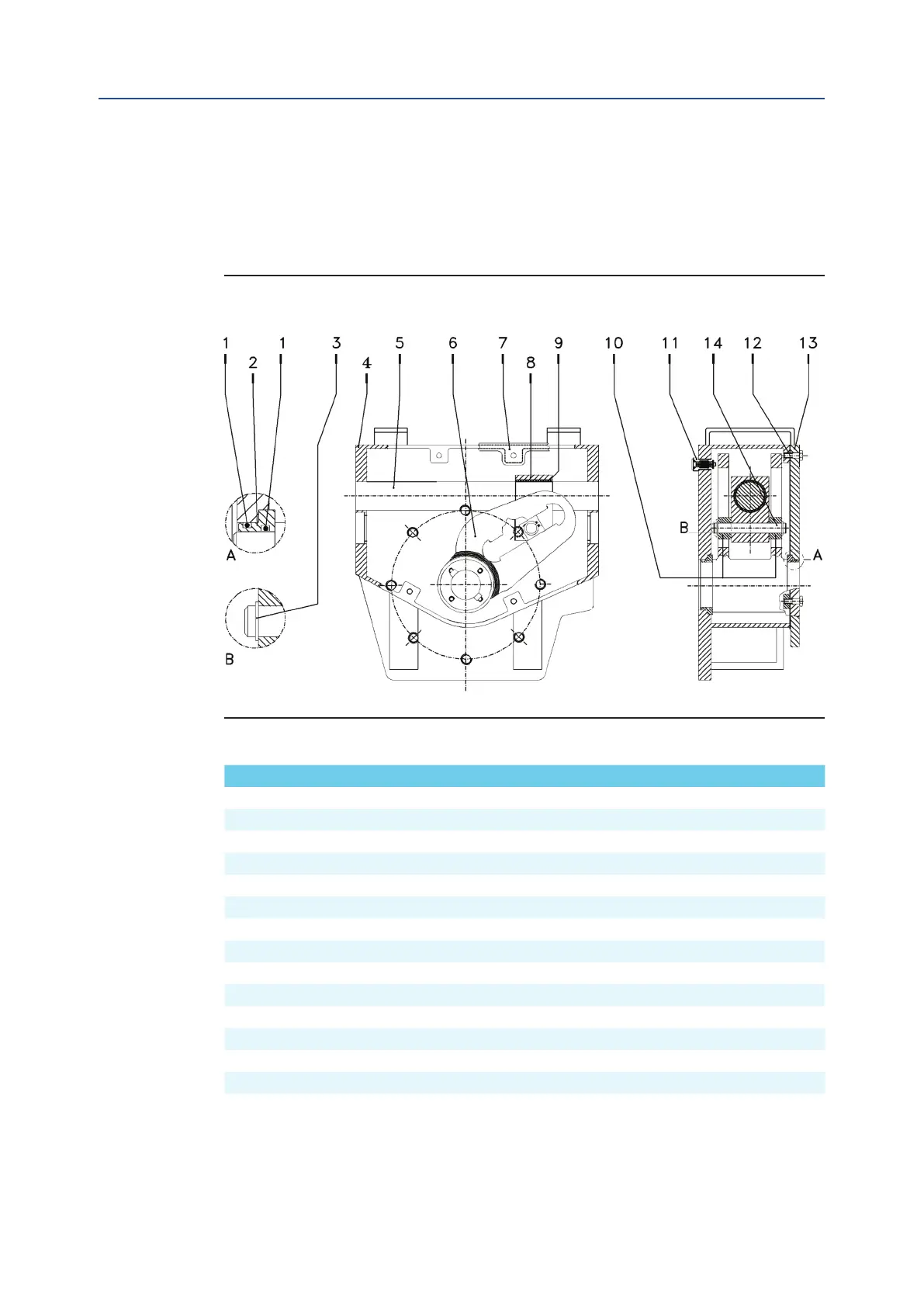

Figure 27 Scotch Yoke Mechanism
Table 13. Parts List
