BIFFI ALGAS-QA EAC User Manual

28
July 2020
Installation, Operation and Maintenance Manual
MAN616_EAC Rev. 5
Section 3: Operation and Use
Operation and Use

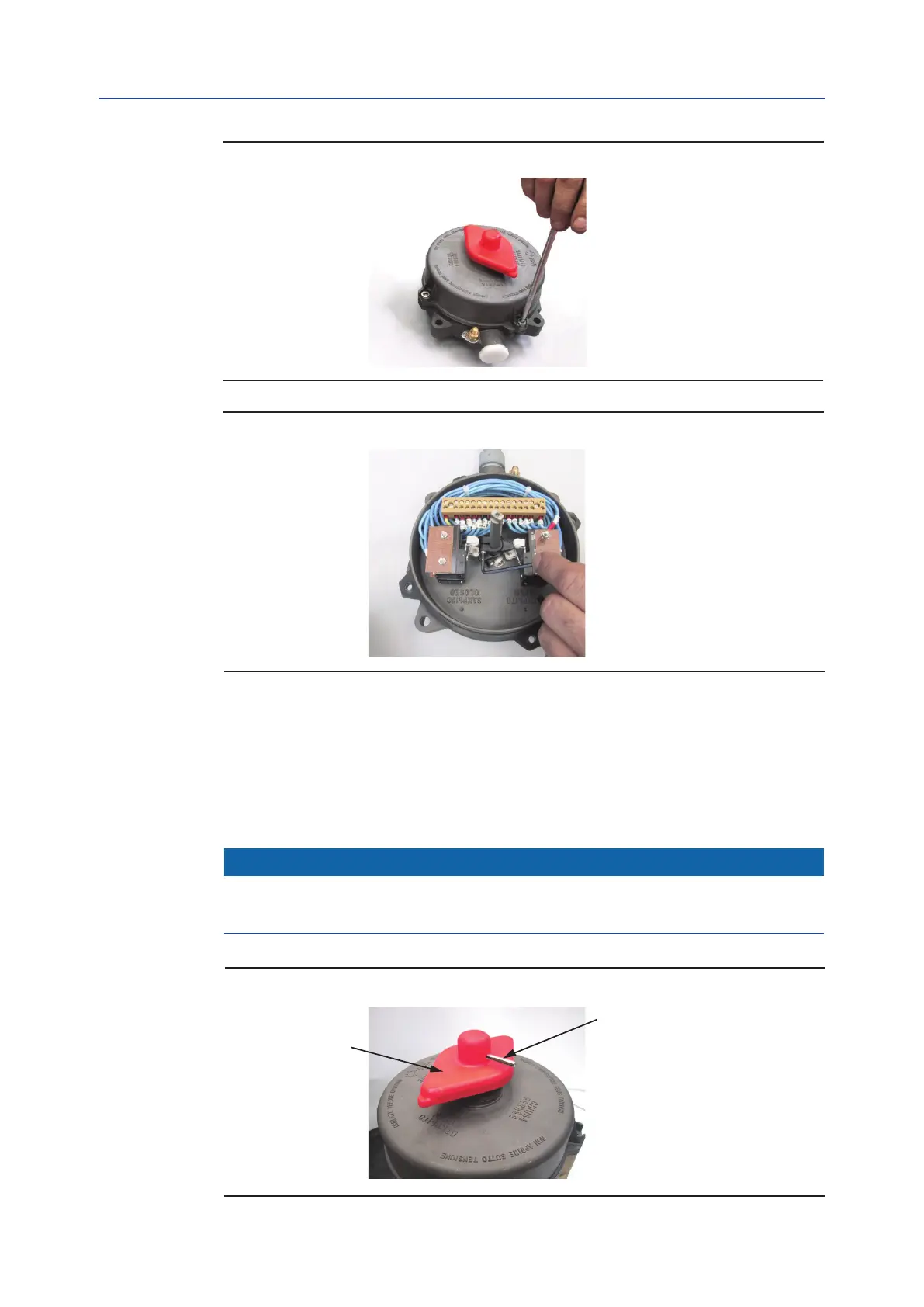

Figure 23 Cam Adjustment
Figure 24 Position Indicator and Pin for Micro-switches Box
Position indicator (index)
Pin
If the index (Figure 22), does not signal the proper position of the valve but is turned by 90°:
• Remove the roll pin placed on the position indicator (index).
• Turn the indicator until reaching its proper positioning.
• Put the roll pin back in its position.
NOTICE
End of stroke micro-switches should be operated before the stop of the stroke of
the actuator due to mechanical stops. Adjust the relative cams properly.
Figure 22 Micro-switches Box
