Section 7: Layouts and Sectional Drawings
Layouts and Sectional Drawings
NOTE:
* recommended spare parts
Item
Qty
Description Material
1 1 Nut Nitrided carbon steel
2 1 Washer Carbon steel
3 1 Sealing washer * Elvax
4 1 Stop setting screw Nitrided carbon steel
5 1
Spring container
(welded assembly)
Carbon steel
6 1 Spring Carbon steel
7 1 Nut Carbon steel
8 1 Shoulder washer Alloy steel
9 1 Rod bushing Steel + Bz+ Teon
10 1 Guide rod Alloy steel (Chromium plated)
11 1 Spring thrust ange Carbon steel
12 1 Rod bushing Steel + Bz + Teon
13 1 Container rod Alloy steel (Chromium plated)
14 1 Guide support Carbon steel
15 1 Plug Stainless steel + FKM rubber

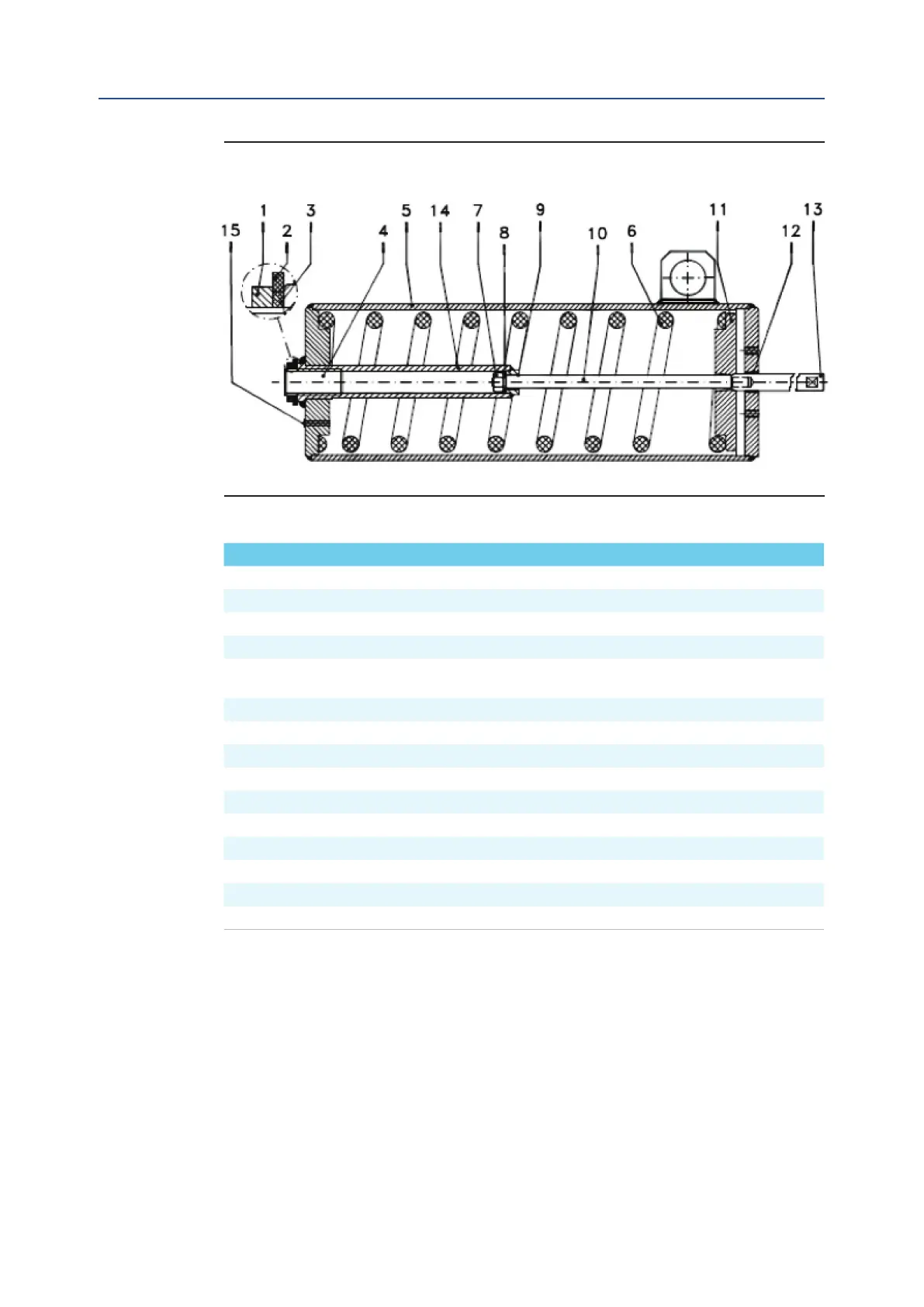

Figure 29 Spring Cartridge
Table 15. Parts List
