BIGTREETECH Kraken V1.0 User Manual
10
Stepper Motor Drivers

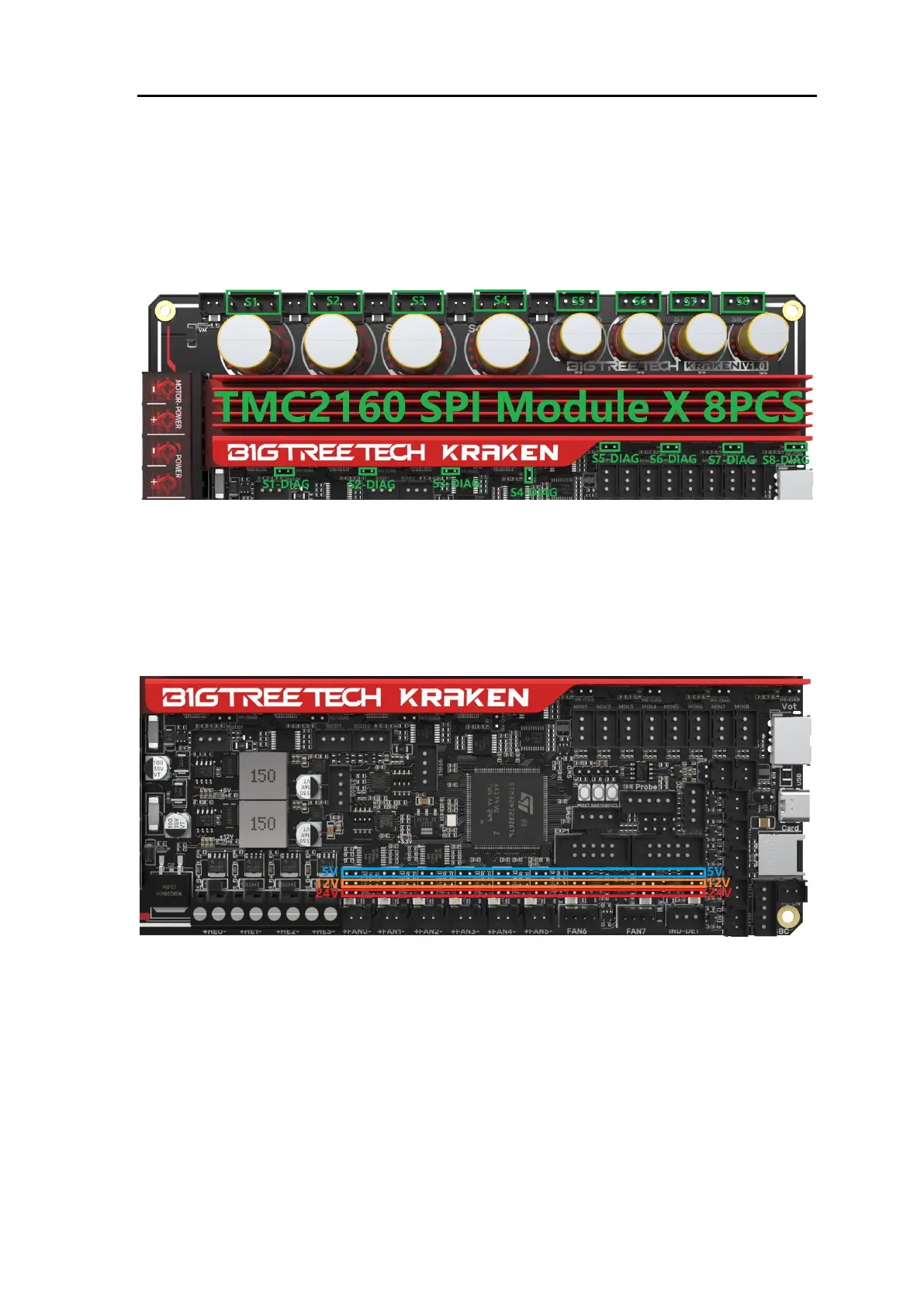

Onboard TMC2160 in SPI mode
No jumper is needed to select the mode; directly use the SPI mode. When using
Sensorless Homing, plug in the jumper; if not, leave it unplugged. DIAG
connection as follows:
PWM Fan Voltage Selection
Set the output voltage to 5V, 12V, or 24V via a jumper. The fan interface output current is
1A.
Be sure to confirm the supported voltage of the fan before selection to avoid damage for
which our company is not responsible.
