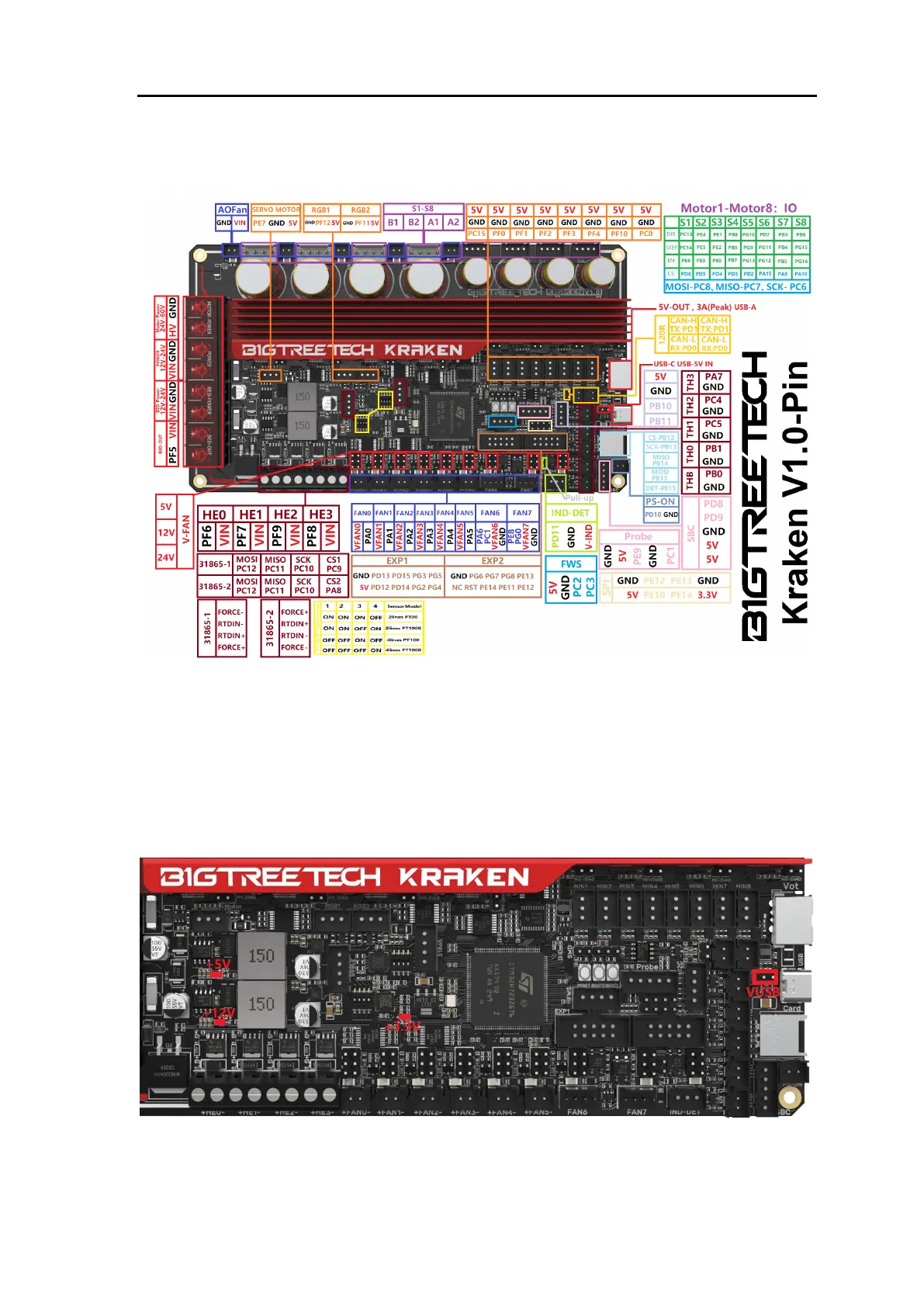

BIGTREETECH Kraken V1.0 User Manual
9
Pin Description
Interface Introduction
USB Power Supply
When Kraken is powered on, the power indicator light turns red, indicating normal
power supply. VUSB is the power select pin which needs to be shorted with a
jumper only when supplying power to the board via USB.
