6. Device Layout

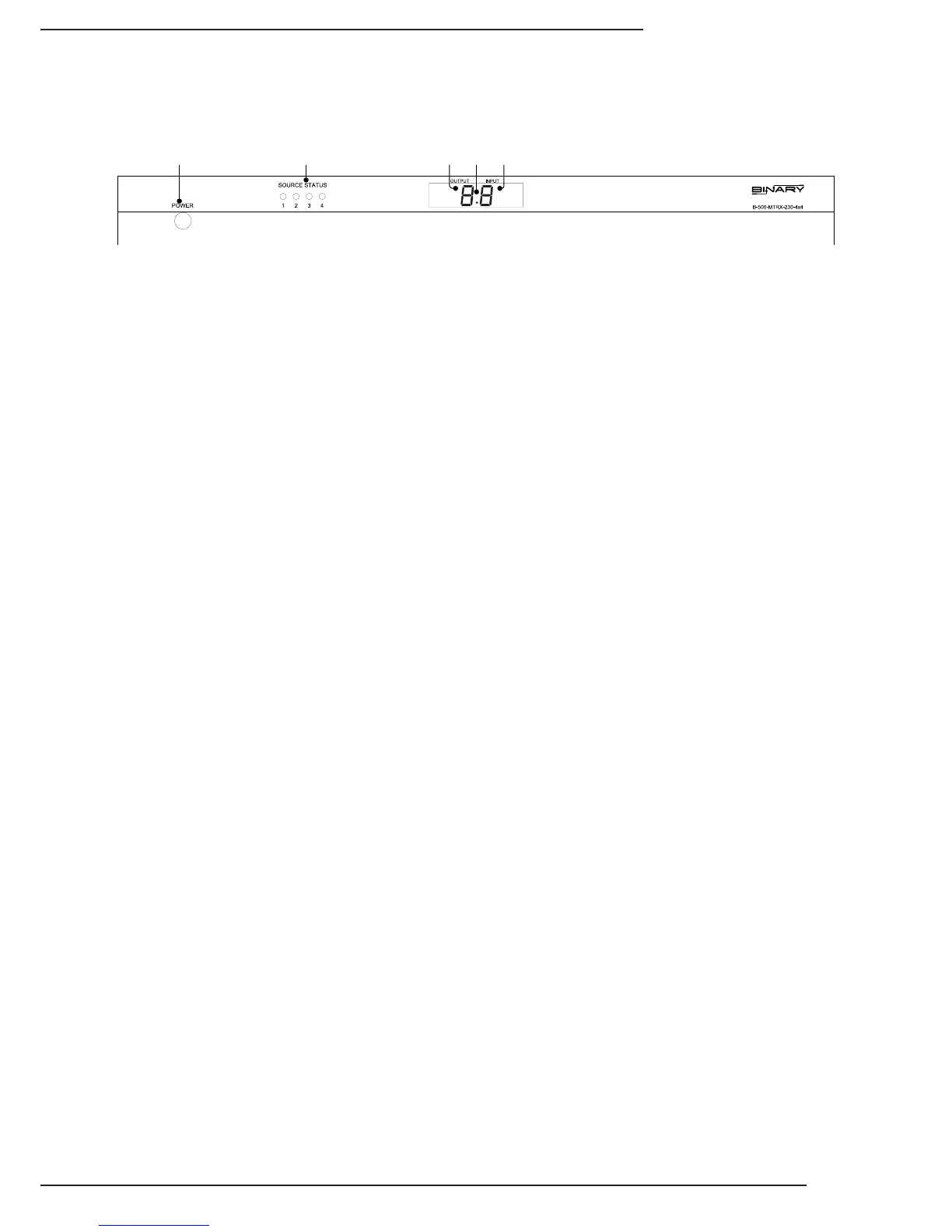

6.1. Front Panel
1. Power On/Off Switch
 TogglePowerfromOntoStand-by.CanbedisabledfromCongurationUtilitysoftware.
2. Source Status LEDs
 IndicatesthattheselectedsourceisonandtransmittinganHDMIsignal.
3. Output Display
 Displaysthelastoutputselected.
4. IR Receiver Window
 IRreceiverforMatrixtocapturecommandssentbyIRremote.
5. Input Display
 Displaysthelastinputselected.
1 2
3
54
