BD/ED/FD (E2) Service Manual
State: 01/2002 Created: 06/2002 / Jochen Tussinger
10
4 Most common service works
4.1 Changing of the controller R3

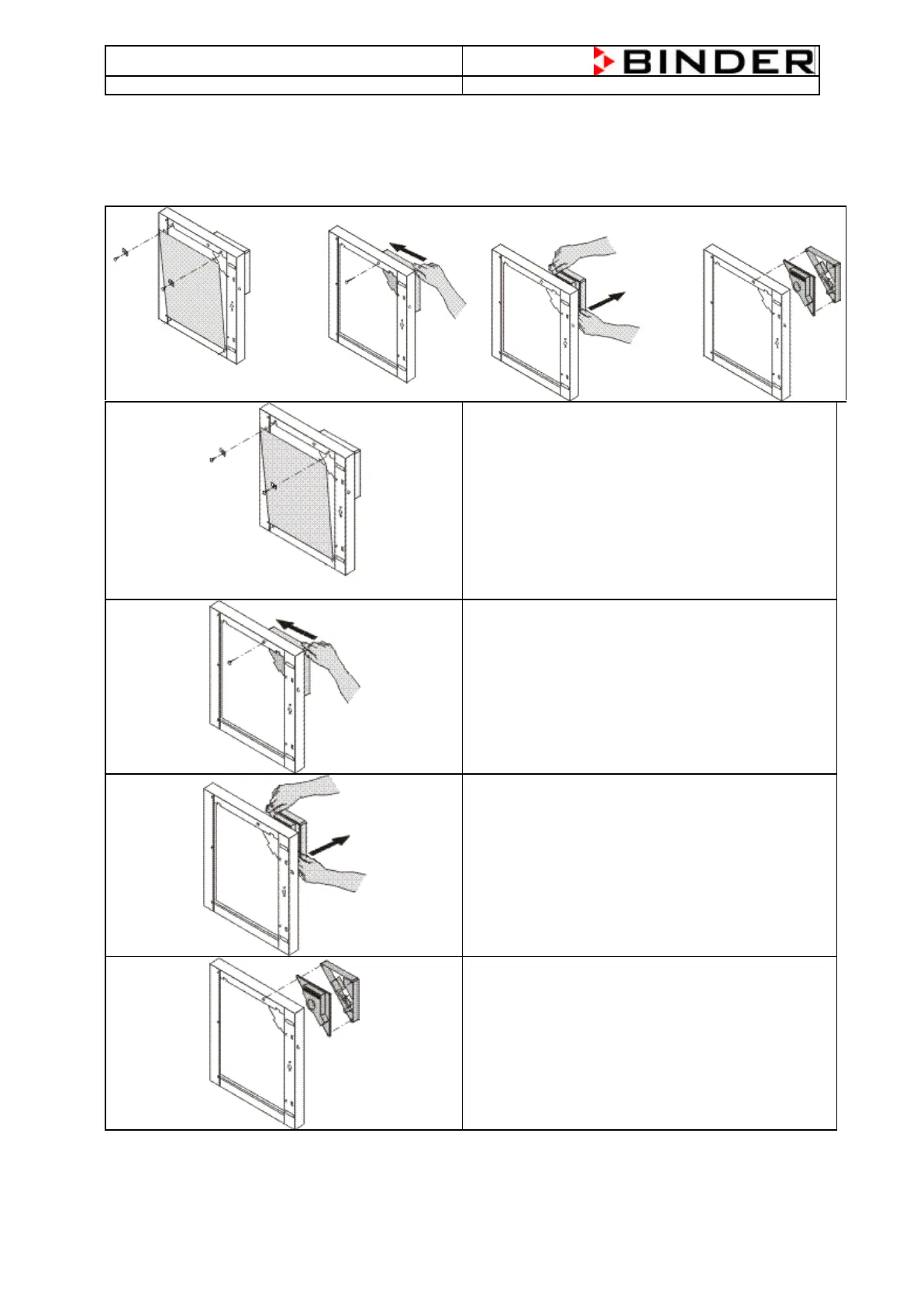

You have to open the two screws at the top of the
inner door. After that you can lift out the inner door,
but be careful the temperature safety device is
inside the door.
Now open the screw behind the white plastic cover.
The plastic cover could be broken after that.
Now you have to press like shown picture at the
perpendiculars side to bring out the controller
housing. Please press only in arrow direction.
Now you can take off the complete housing, be
careful, the temperature safety device is connected.
At the rear side of the housing you’ll find two screws,
you have to open them to work on the controller.
To bring back the controller in starting situation,
please fit it together in opposite direction.
