BD / BF / ED / FD / FED (E3.1) 12/2017 page 56/105
12. Options
12.1 Communication software APT-COM™ 3 DataControlSystem (option)
The chamber is regularly (FED) or optionally equipped with an Ethernet interface on the chamber rear
that can connect the BINDER communication software APT-COM™ 3 DataControlSystem. The actual
temperature value is given at adjustable intervals. Programming can be performed graphically via PC. Up
to 30 chambers can be cross-linked. The MAC Address is indicated in the Ethernet menu (chap. 11). For
further information, please refer to the operating manual of the BINDER communication software APT-
COM™ 3.
To establish a connection via the chamber’s Ethernet interface, the chamber must be turned off.
12.2 Data logger kits (option)
BINDER Data Logger Kits offer an independent long-term measuring system for temperature. They are
equipped with a keyboard and a large LCD display, alarm functions and a real-time function. Measure-
ment data are recorded in the Data Logger and can be read out after the measurement via the RS232
interface of the Data Logger. It offers a programmable measuring interval and permits storing up to 64000
measuring values. Reading out is done with the Data Logger evaluation software. You can give out a
combined alarm and status protocol directly to a serial printer.
For BD/BF: Data Logger Kit T 220: Temperature range -90 °C / -130 °F up to +220 °C / 428 °F
For ED/FD/FED: Data Logger Kit T 350: Temperature range 0 °C / 32 °F up to +350 °C / 662 °F
For detailed information on installation and operation of the BINDER Data Logger, please
refer to the mounting instructions Art. No. 7001-0204 and to the original user manual of the
manufacturer, supplied with the data logger.
12.3 Object temperature display with additional Pt100 temperature sensor (op-
tion)
With this option an additional flexible temperature sensor Pt100 measures the chamber temperature or
the temperature of the charging material which is shown on the controller. The sensor-top protective tube
of the flexible Pt100 can be immersed into liquid substances.
The object temperature display enables the determination of the actual temperature of the charging mate-
rial during the whole process. The object temperature is displayed in the controller in Normal Display.

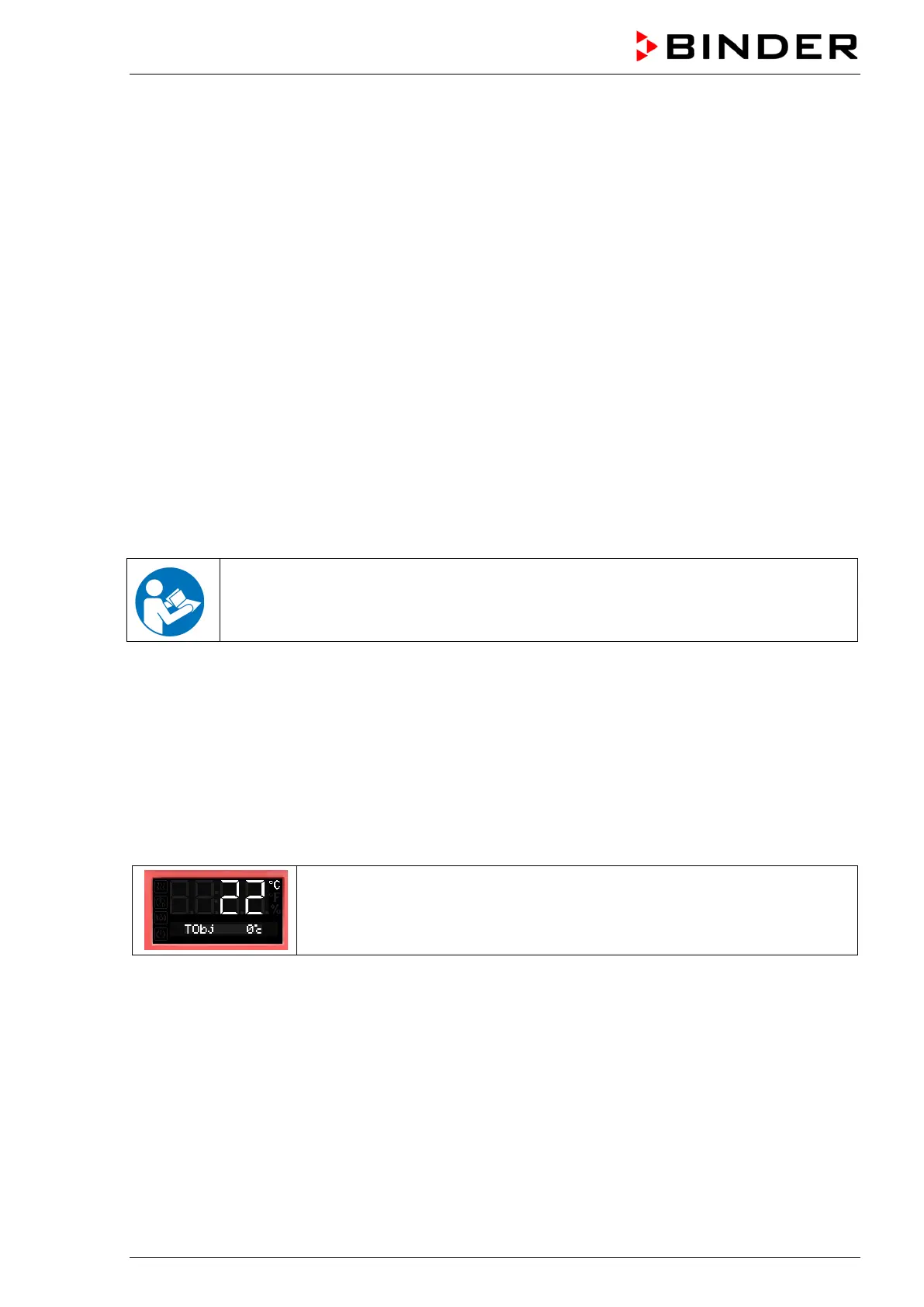

Chamber with option object temperature display:
Actual temperature value and actual object temperature value
Technical data of thePt100 sensor:
• Three-wire technique
• Class B (DIN EN 60751)
• Temperature range up to 320 °C / 608 °F
• Stainless steel protective tube 45 mm length, material no. 1.4501
