Determining the B dimension (feed unit, welded sleeve with external
thread)
First, with the feed unit installed, measure the whole length from the inner wall of the pipe to the end of
the reducing bush (dimension "M" as on the left of the following diagram) in order to determine dimen-
sion "B".
Screw the threaded pipe nipple of the clamping screw fitting into the reducing bush. Please use sealing
material according to the specifications.
Screw the nut with the pressing ring and the cutting ring onto the threaded pipe nipple in such a way that
the sensor rod can still move.

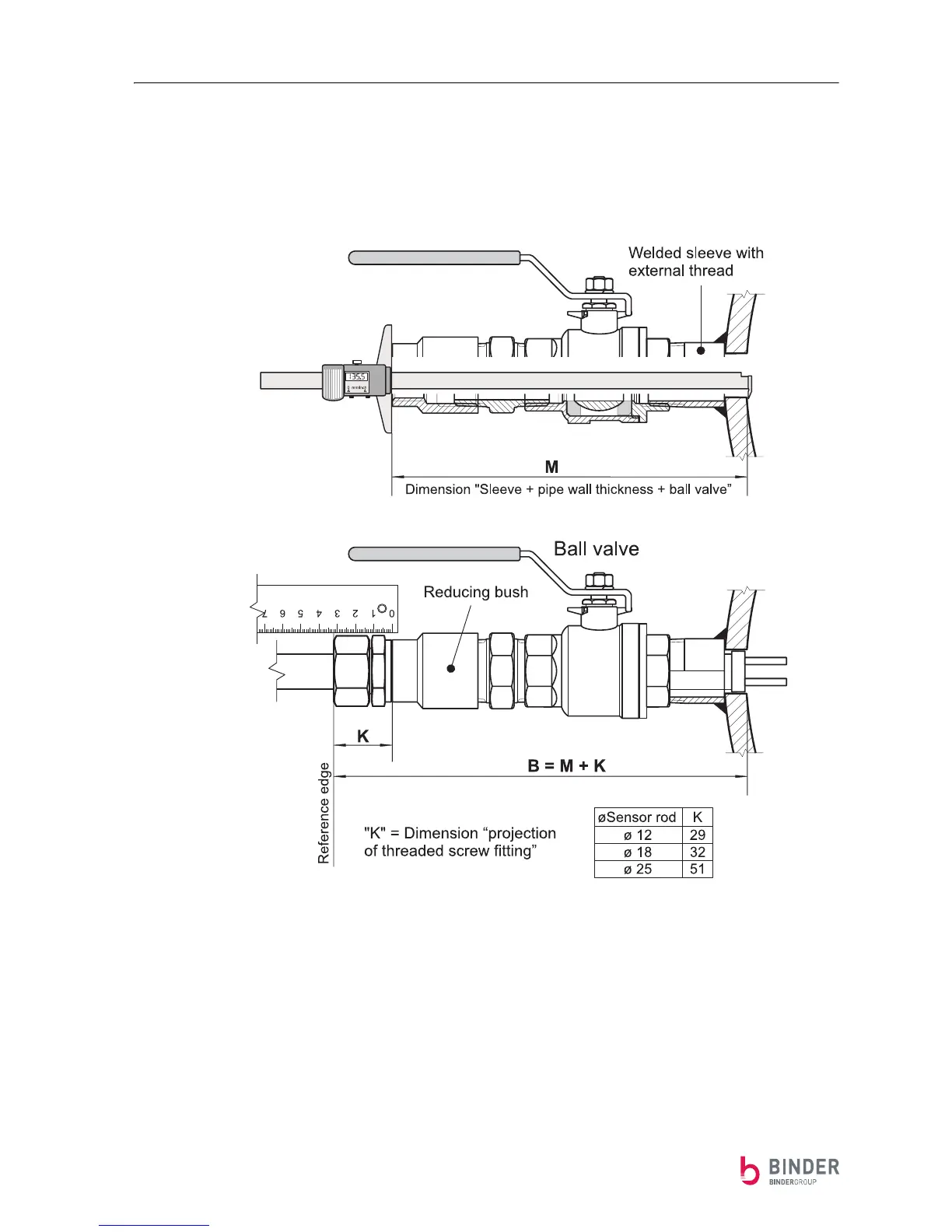

Measure dimension "K" = reference edge up to reducing bush (see on the left of above diagram).
Add dimensions "K" and "M" to obtain dimension "B".
