COMBIMASS
®
compact
Doc. No.: 0905ME20500
15
Chapter 2 Installation

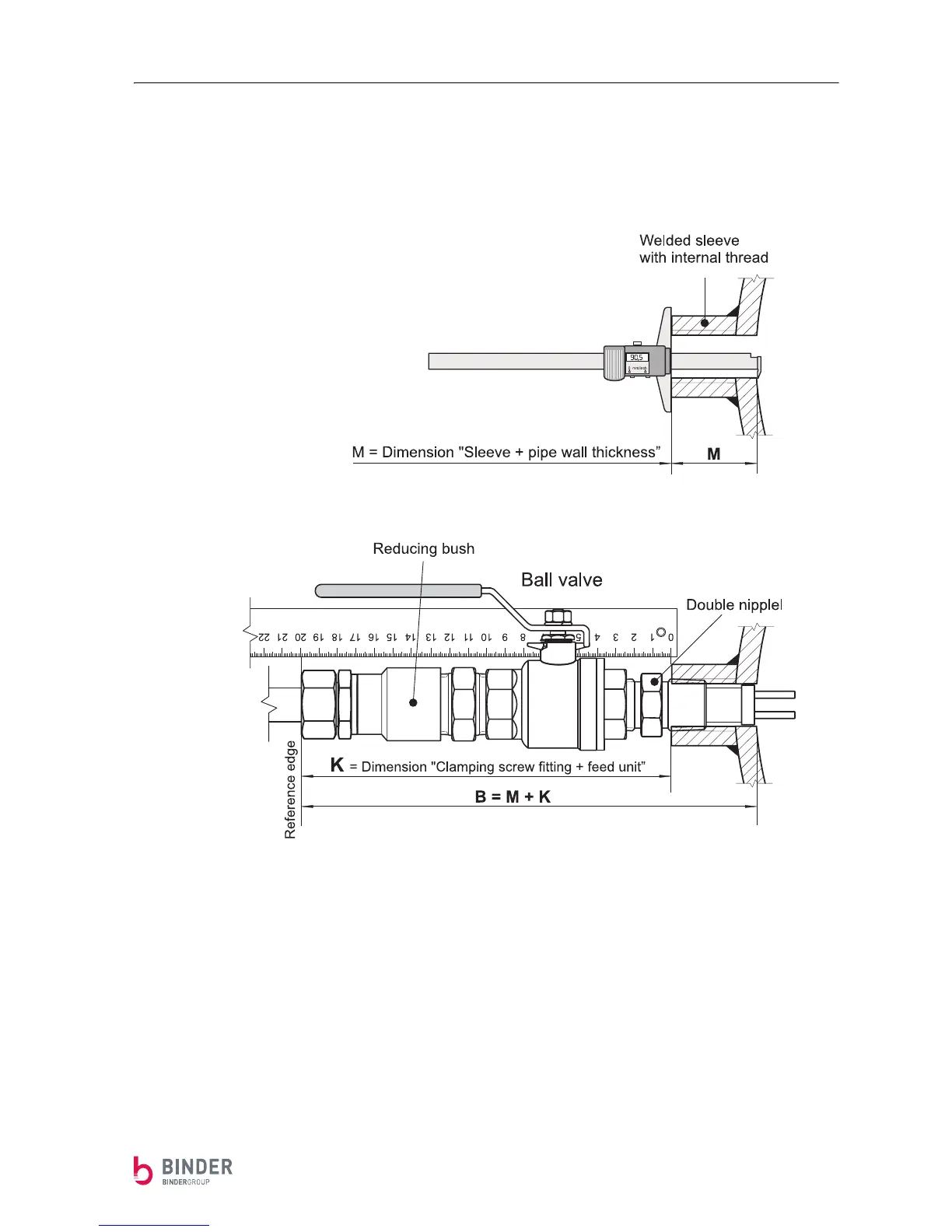

Determining the B dimension (feed unit, welded sleeve with internal
thread)
Before installing the feed unit, you should measure the length of the welded sleeve up to the inner wall
of the pipe (dimension "M" as on the left of the following diagram) in order to determine dimension "B".
Install the feed unit. Please use sealing material according to the specifications. Screw the threaded pipe
nipple of the clamping screw fitting into the reducing bush. Screw the nut with the pressing ring and the
cutting ring onto the threaded pipe nipple in such a way that the sensor rod can still move.
Measure dimension "K" = reference edge up to the welded sleeve (see on left of above diagram).
Add dimensions "K" and "M" to obtain dimension "B".
