Chapter 2 Installation
Wiring of the sensor electronic with field housing (optio-
nal)
Protection class: Sensor IP and EEx [ed], field housing IP65

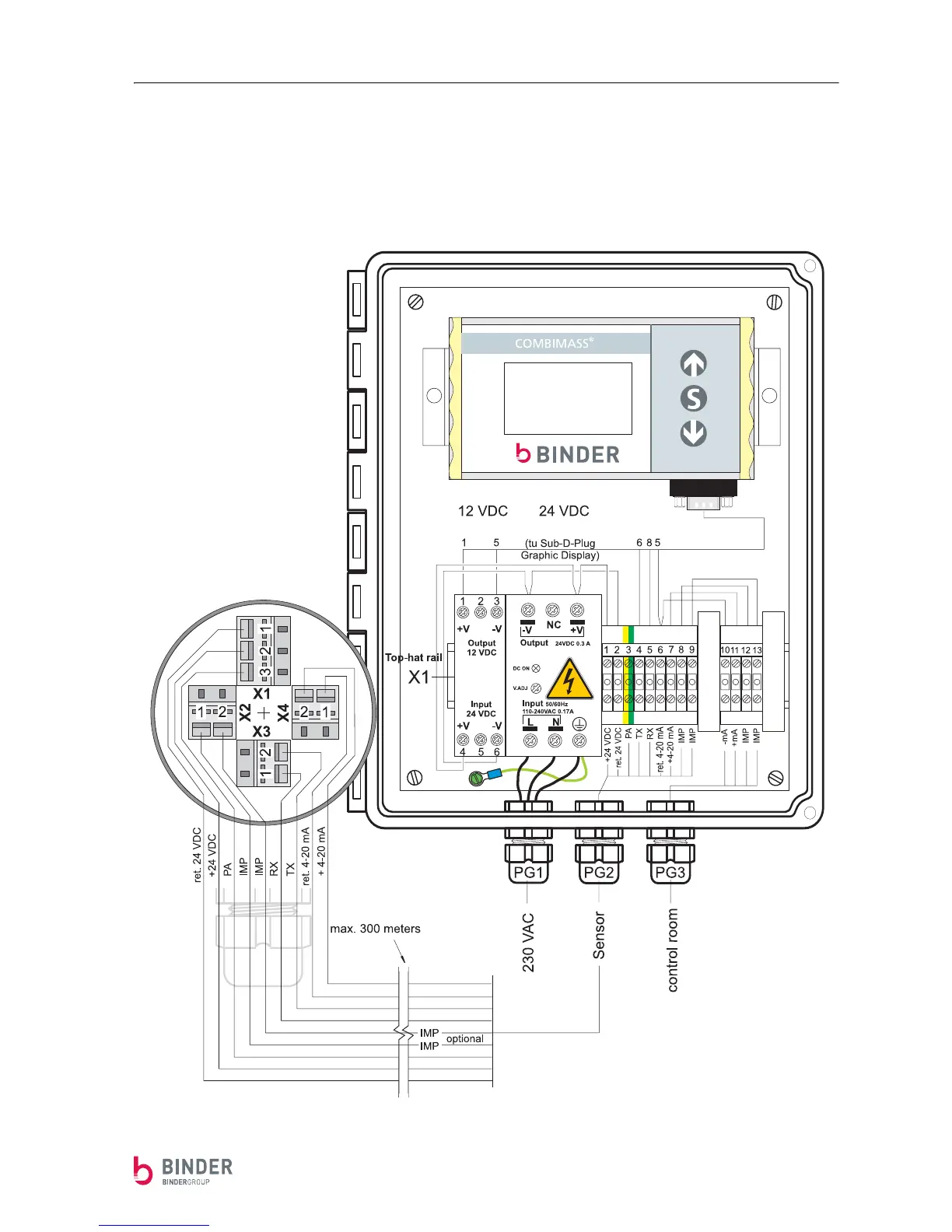

Diagram: Wiring of the sensor electronic with field housing
