Binder COMBIMASS compact - Error detection: Wiring error in the sensor electronic with supply isolator

To Next Page

To Previous Page

COMBIMASS

compact

Doc. No.: 0905ME20500

Chapter 2 Installation

Assembly of the sensor electronic with supply isolator in modular form. Installation onto a mounting plate

or in customer's own top-hat rail housing.

■ Please see also instructions on page 21 "Wiring of the sensor electronic EEx [ia] with supply

isolator and field housing" and on page 22 "Table: Wiring of the sensor electronic EEx [ia] with

supply isolator and field housing".

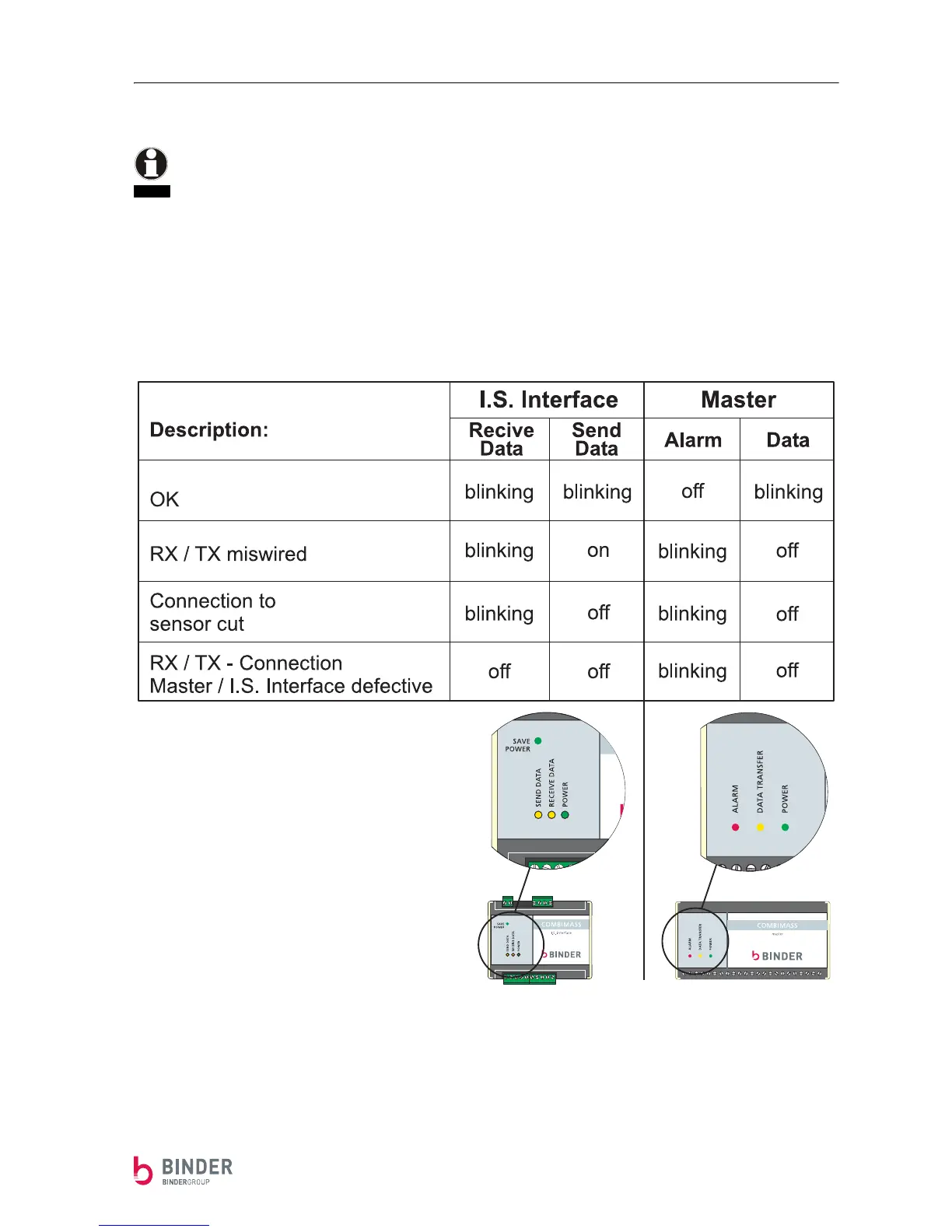

Error detection: Wiring error in the sensor electronic with sup-

ply isolator

Indicated by LEDs

NOTE
