29
Bio-Well Company
www.bio-well.com
In order to rotate the ellipse – hover the mouse upon one of the yellow dots, click
and hold the left mouse button, then move the mouse to the needed direction – ellipse
and the blue line will adjust accordingly.
If you want to undo the changes in the ellipse orientation click Reset ellipse”
button.
Conducting a “Full Scan
Select a Card in which you want to make a “Full Scan” and click “Full Scan” button
in the right top corner of the main screen to create a new Scan. Special interface will be
displayed (pic. 28).
Place each finger one by one on the glass electrode and click green “Scanbutton
in the top left corner or press spacebar on the computer keyboard. Then place next
finger and repeat the operation. Time interval between captures for BW 1.0 is 5
seconds and for BW 2.0 & 3.0 is 1 second. At the bottom of the screen you can add notes
about the Scan that you are making. It will be displayed in the Notes section (pic. 20)
when you select this Scan in your database.

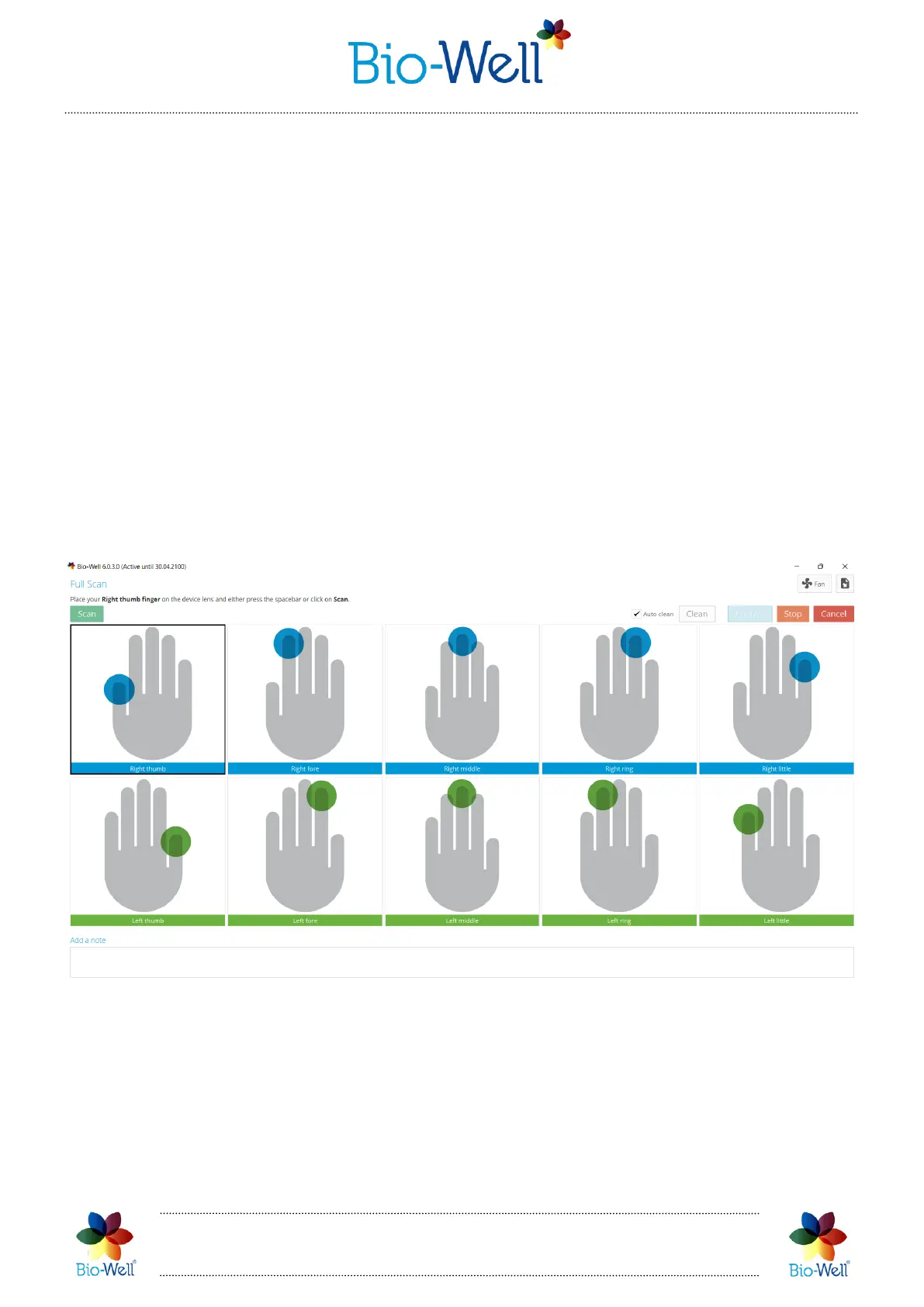

Pic. 28. Interface for conducting “Full Scan”.
In order to get the reliable data on the Bio-Well device a specialist should control
the positioning of the fingers on the glass electrode. Only if you know that all fingers
were captured correctly you can really rely on the parameters calculated automatically
by the Bio-Well Software program. If Bio-Well server is not able to define the top of the
finger it will not show the blue horizontal line on the GI and red exclamation mark will
be displayed (see pic. 25). In such case you need either to recapture the finger or erase
