16 Biodex Medical Systems, Inc. © 2017
3. Locate the printer power cable. Plug the small end into the power receptacle on the back of
the printer.
4. Insert the AC plug end of the printer power cable first into the Biodex-provided power
adapter, and then insert the adapter plug into the power cable receptacle on the back, lower
base of the Gait Trainer 3. Do not connect any other equipment to this receptacle.
5. Locate the Biodex-provided 15ft USB cable that will be pre-installed in one of the USB ports
on the Gait Trainer 3 display. Connect the other end of the cable to the port at the back of
the printer.
6. Ensure both cables are positioned such that they will not interfere with the patient or get
caught in the Gait Trainer 3 platform or handles.
7. Refer to the printer manual for directions on installing ink cartridges and paper.
8. With power ON to the Gait Trainer 3, press the <Power ON> switch on the printer. Refer to
the printer manual for additional printer information.

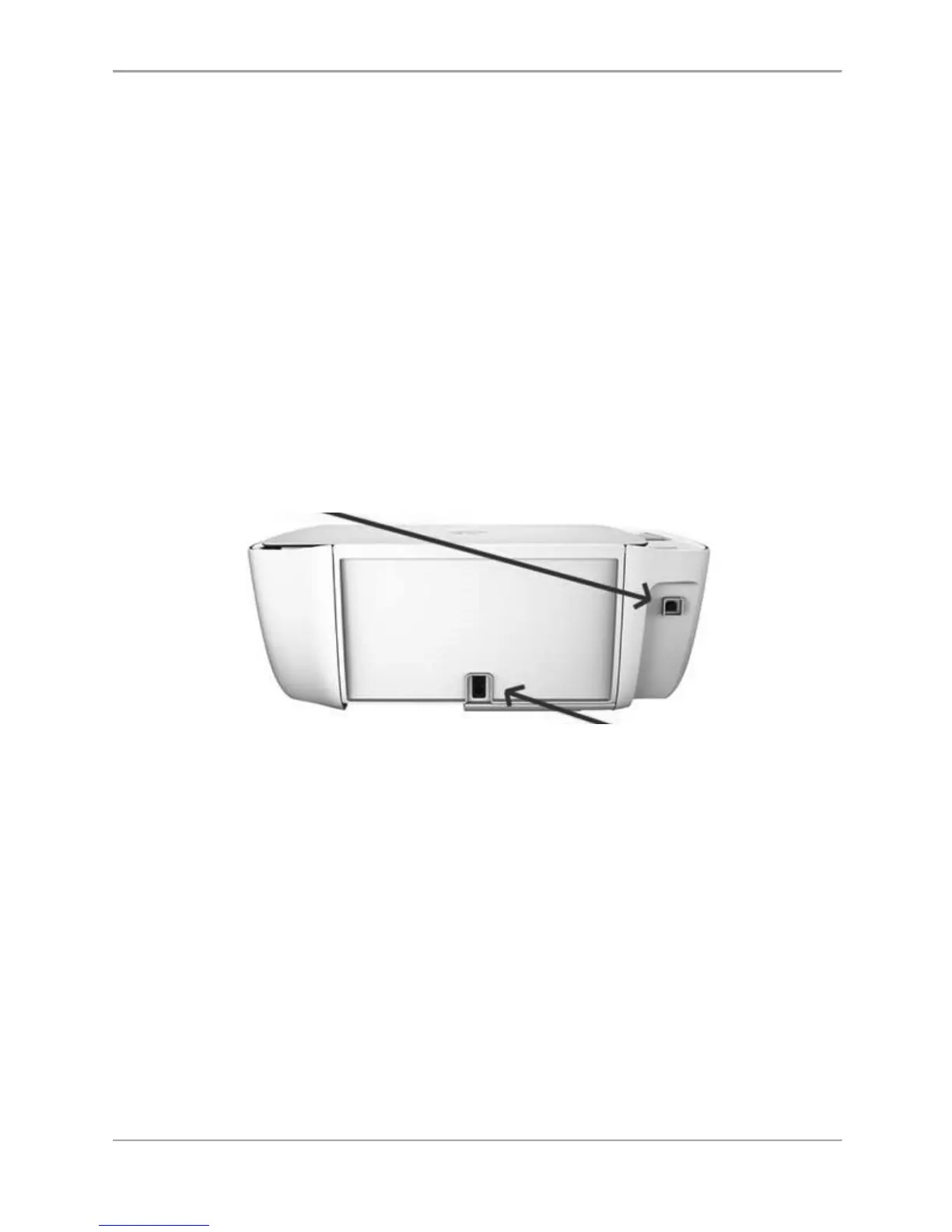

Figure 1.8. Connect the power cable and USB cable to the rear of the printer.
USB connection – The Gait Trainer 3 display will be shipped with a
USB cable plugged into one of the display’s USB ports. Plug the other
end into the data port on the back of the printer.
Power connection – Plug the smaller end of the printer power cable in
here. Plug the AC end of the cable into the power cable adapter.
Lastly, plug the adapter into the receptacle on the base of the Gait
Trainer 3.
