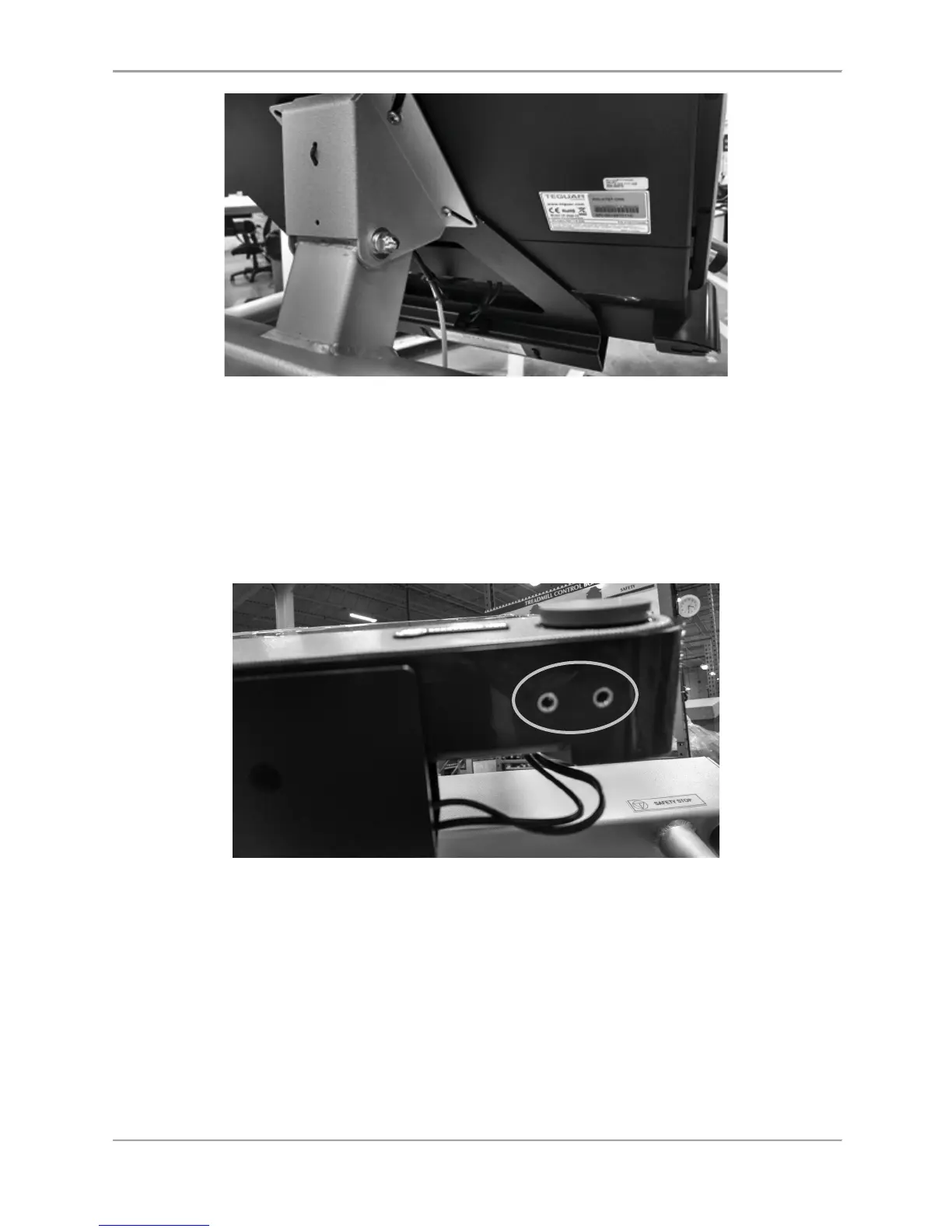

Figure 9.2. The sound bar mounting bracket is slid in behind the Gait Trainer display
bracket and fastened with the two screws from the Gait Trainer display
bracket.
The sound bar has two cables: one for power and one for sound (see Figure 9.4). Both plug
into the display directly above it. The sound bar also has standard jacks for headphones and a
microphone (see Figure 9.3).
Figure 9.3. The sound bar’s headphone and microphone jacks (circled).
