beginning print-position that is set, and the tearing/cutting position of the current bill is the
tearing/cutting position that is set.
z Calculation explanation for the tearing/cutting position offset and the beginning print-position offset
is shown as follows:
1. When the distance L of the tearing/cutting position offset from the black mark is same with the
inherent mechanical value L
0
of the printer, and the distance Q of the tearing/cutting position
offset from the beginning print-position is same with the inherent mechanical value Q
0
of the
printer (shown as figure 7-2), all the offset value set by “GS （ F” command is 0.
2. (1) When the distance L of the tearing/cutting position offset from the black mark is less than the
inherent mechanical value L
0
of the printer (shown as figure 7-3), the calculation of
tearing/cutting position offset is shown as follows:
tearing/cutting position offset =（L
0
-L）/0.176 （dots number）
(2) When the distance L of the tearing/cutting position offset from the black mark is greater than the
inherent mechanical value L
0
of the printer (shown as figure 4), the calculation of tearing/cutting
position offset is shown as follows:
tearing/cutting position offset =（L
0
+ distance of adjacent two black mark -L）/0.176（dots number）
Note: When the tearing/cutting position offset is being set, the parameter “a” of “GS （ F”
command should be “2”.
3. When the tearing/cutting position offset is not zero, or the distance Q of the tearing/cutting position
offset from the beginning print-position is greater than the inherent mechanical value Q
0
of the
printer (shown as figure 7-5), the calculation of the beginning print-position offset by “GS （ F”

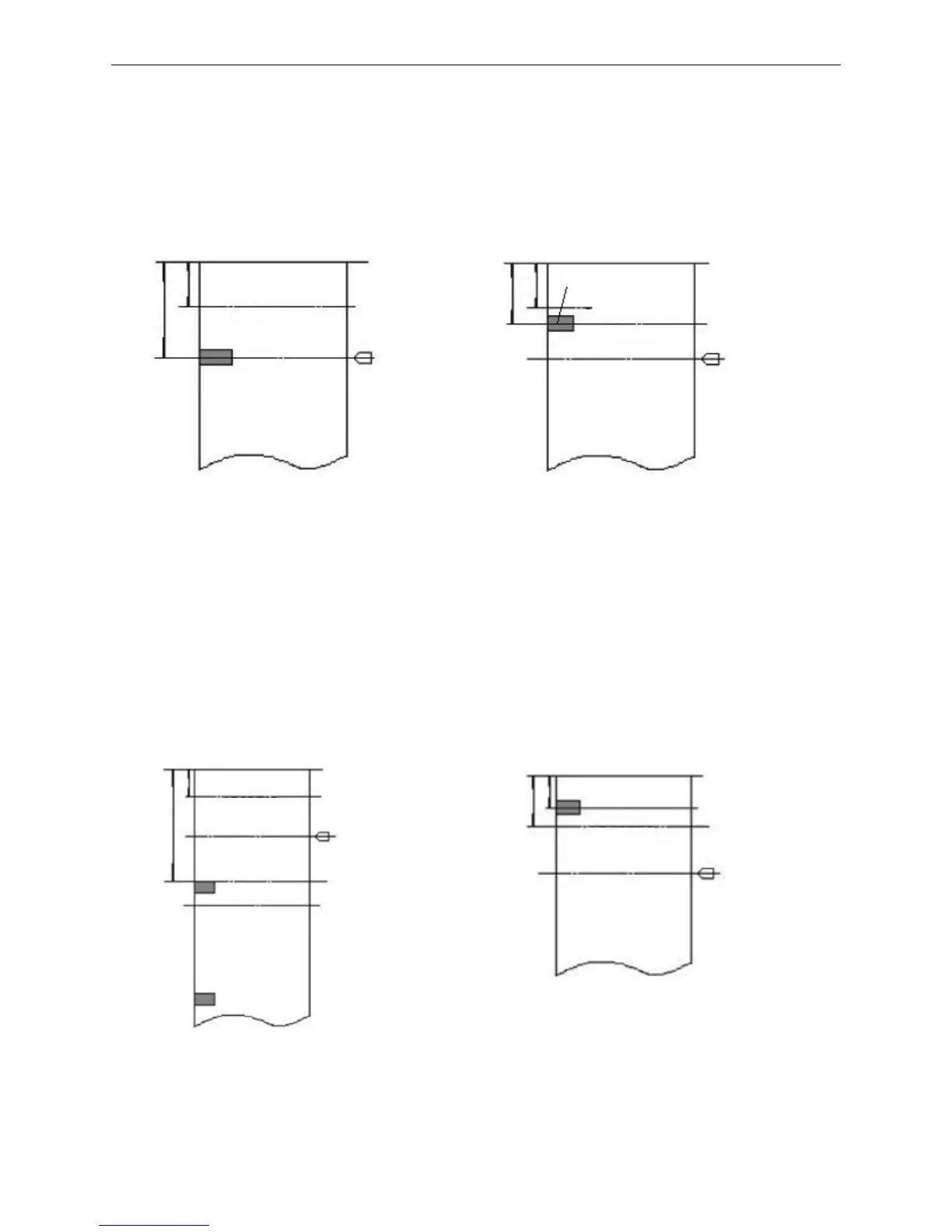

Figure 7-2
