GS （ A Test command
Format: ASCII:
GS （
A pL pH n m
Decimal: 29 40 65 pL pH n m
Hex: 1D 28 41 pL pH n m
[Description]
pL=2, pH=0, n=0, m=1, 49
Enter HEX print mode (HEX DUMP)
To cancel this command, you must restart the printer.
GS （ F Set offset of black mark for printing and cutting position
Format: ASCII:
GS （
F pL pH a m nL nH
Decimal: 29 40 70 pL pH a m nL nH
Hex: 1D 28 46 pL pH a m nL nH
[Description]
The parameters set by this command will be valid even after the printer is restarted.
This command is used for selecting permission of orientation control by black mark and used for setting the
beginning print-position offset or tearing/cutting position offset from black mark. This value is calculated by
dots number.
The parameters of this command are shown as follows:
pL+ (pH×256) =4, that is: pL=4, pH=0
1≤a≤3,
m=0, 48
0≤ (nL+nH×256) < 1700
z a: set the different offset
a function
1 Set the beginning print-position offset from the black mark
2 Set the beginning tearing/cutting position offset from the black mark
3 Set the beginning print-position offset from the cutter
z m=0 or m=48, calculate the offset in the feed direction;
z nL、nH: The distance of offset is (nL+nH×256)×0.176mm; when a=3, 0≤nL≤246; nH=0.
z nL=nH=0,when the black mark was detected, the current print head’s position on the bill is the

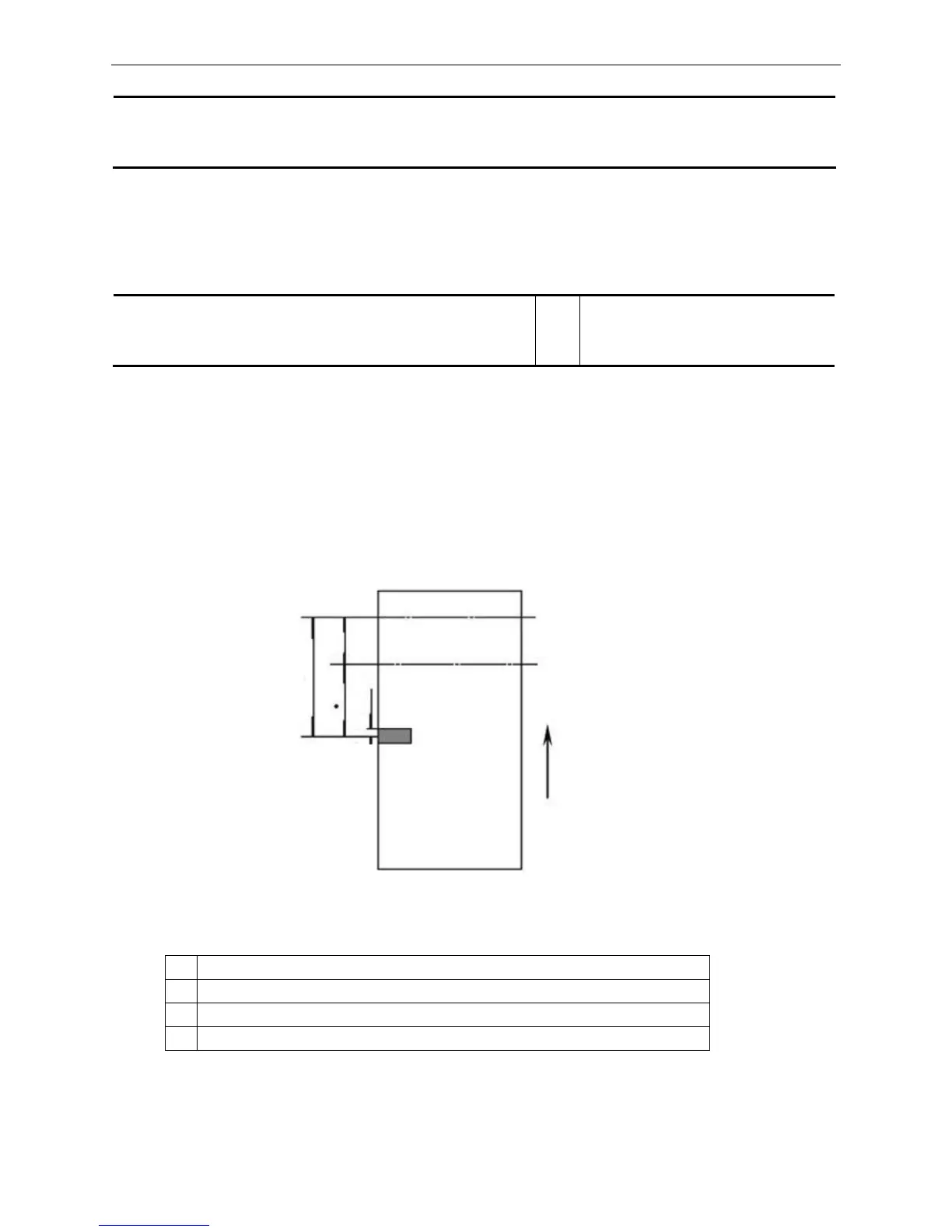

Figure 7-1
A=67mm
C=29mm
Middle position of black
mark detector
2mm
Line position for cutting/tearing paper
Beginning printing position
A
Feeding direction
C
