 5-lead

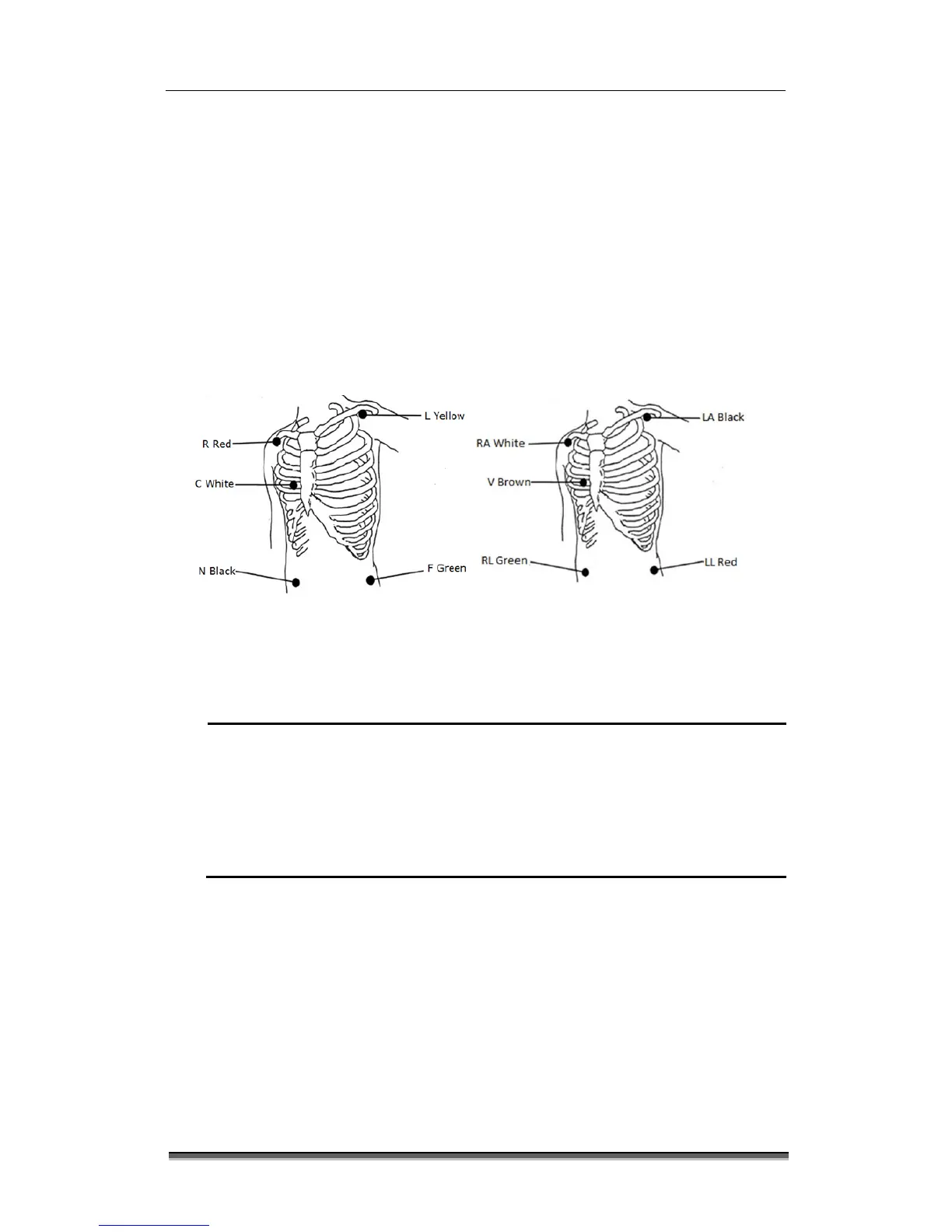

The electrode placement position of 5-lead is shown in Fig. 9-2:
 R/RA electrode: placed below the clavicle, near the right shoulder.
 L/LA electrode: placed below the clavicle, near the left shoulder.
 N/RL electrode: placed on the right abdomen.
 F/LL electrode: placed on the left abdomen.
 C/V electrode: placed on the chest wall.
European Standard American Standard
Figure 7-2: 5-Lead placement method
NOTE

To ensure the patient safety, all leads must be connected to the patient.
 If the electrodes are attached correctly, but the ECG wave is not accurate, then
replace the lead.
 Interference from ungrounded instrument near the patient and ESU may cause
waveform problem.
