7.4 ECG display
ECG wave display

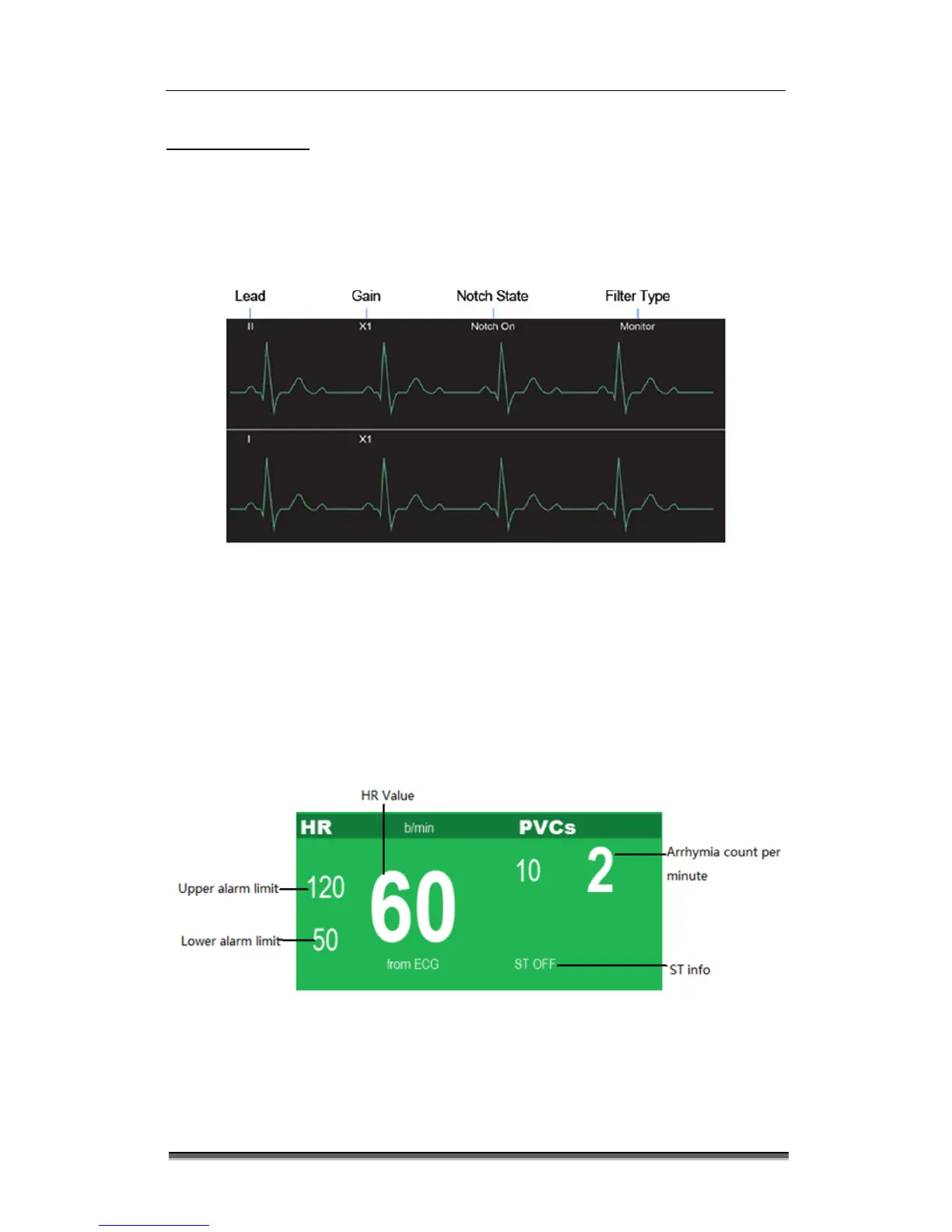

The monitor displays two ECG waves on the normal screen. Fig. 7-3 below is the monitoring
interface of 5-lead, and is for reference purposes only. The graphics displayed on your monitor
may be slightly different.
Figure 7-3: ECG wave in normal display format
In addition, when “Pace Maker” is set to “Yes”, and the patient wears a pacemaker, the
“┃”symbol will be marked in the top of the ECG wave.
ECG parameter display
The ECG parameter area of the monitor in the normal screen is shown in Fig. 9-4:
Figure 7-4: ECG parameter in standard display format
