30
! Selecting Reference Impedance for dBm Modifier
then to toggle in (and out) the Reference Impedance selection
mode.
Any of the following 21 types of reference impedance may be selected:
8000
Ω
, 1200
Ω
, 1000
Ω
, 900
Ω
, 800
Ω
, 600
Ω
, 500
Ω
, 300
Ω
, 250
Ω
, 150
Ω
,
135
Ω
, 125
Ω
, 124
Ω
, 110
Ω
, 93
Ω
, 75
Ω
, 50
Ω
, 16
Ω
, 8
Ω
, 4
Ω
, 2
Ω
If reference impedance 2, 4, 8, or 16
Ω
is selected, the dBm modifier is
displayed in Watts (power).
! Operation procedures:
Condition 1:
then , the reference impedance currently used will be displayed
on the secondary display.
or to scroll to the desired value of reference impedance.
to store the selected value.

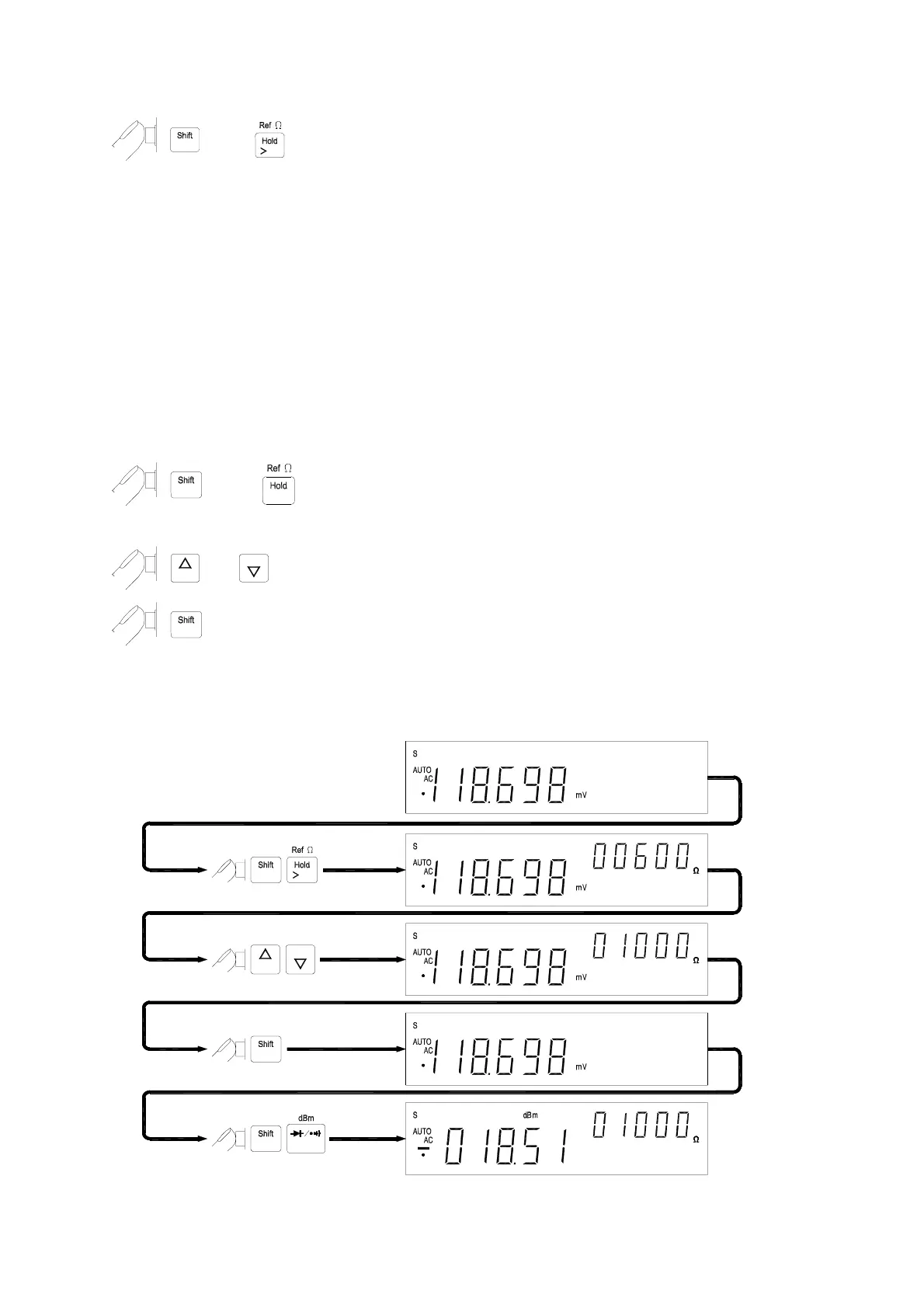

! Operation Example: Set the reference impedance to 1000Ω for dBm calculation.
