31
Condition 2:

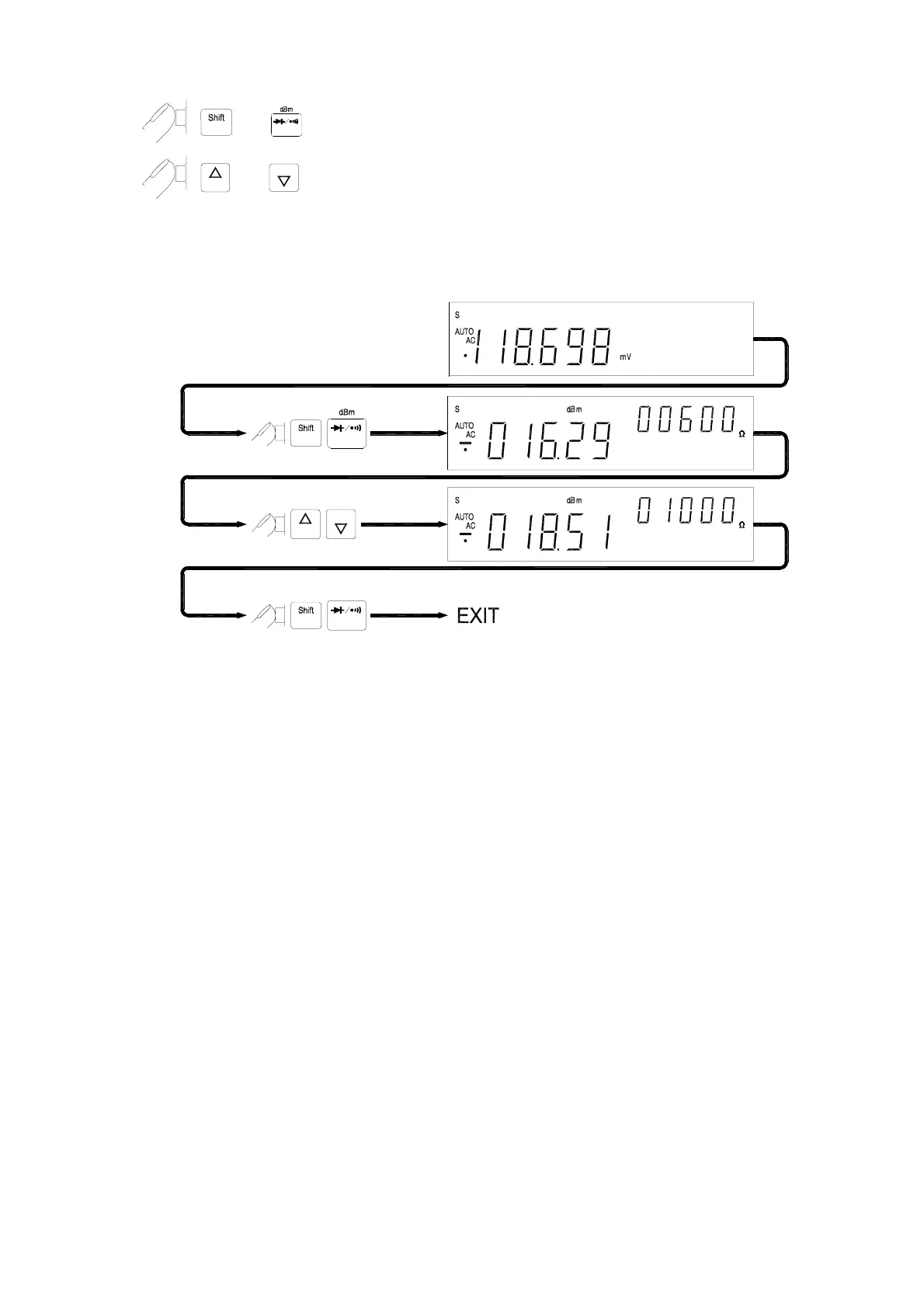

then to enter dBm calculation mode.
or to scroll to the desired impedance value shown as the following
operation example.
• Operation Example:
! Using MINMAX Modifier for Dynamic Recording
“MINMAX”
modifier enables the meter to store the minimum and the
maximum input signals measured since the
“MINMAX”
modifier was
selected. The definitions of
“MIN”
and
“MAX”
are defined as follows:
MIN: Minimum value of calculation results for measured signal
MAX: Maximum value of calculation results
If
“MAX”
modifier is selected, the display indicates the latest maximum reading
until next measurement reading exceeds the previous recorded reading.
If
“MIN”
modifier is selected, the display indicates the latest minimum reading until
next measurement reading drops below the previous recorded reading.
If
“MINMAX”
mode is selected, the display indicates the actual value of input
signal.
