36
3-13 Combinations of Arithmetic Functions

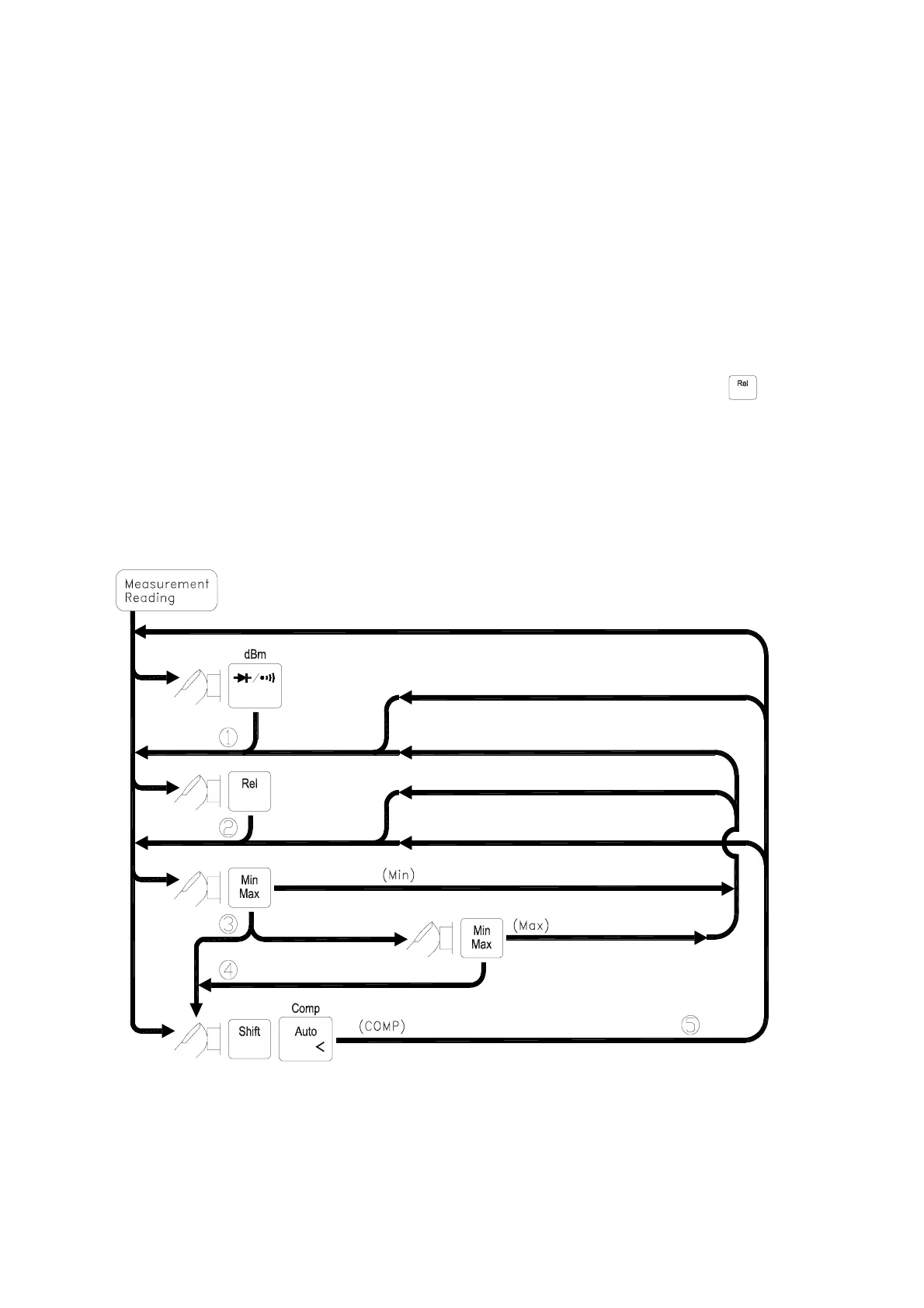

The meter allows the user to use multiple arithmetic functions (dBm, MINMAX,
REL, HOLD, and COMP) simultaneously. The result of one arithmetic function can
be computed again as shown in the following operation procedure flowchart.
Example:
Using the following procedures to set the upper and the lower limit values
for
“COMP”
function.
When using the multiple arithmetic functions, any types of modifier calculation can
be combined together as the operations shown above. For example, if
is
selected while dBm modifier is enabled, the result of the dBm calculation (
1
)
becomes a relative base (
2
) for new measurements. The sequences and the results of
the combined arithmetic functions are shown in Table 3-9 step by step when all types
of arithmetic functions are activated sequentially as shown in above example.
Note: Arithmetic functions can be operated for primary display only.
