35
The upper limit will be shown in primary display.
, , or to change this value.
to store the high limit value in counts.
then and repeat the above steps to set and store the lower limit
value.
Note: 1. After the upper and/or the lower limits (counts) have been set up, the upper and/or
the lower limits can be used for all ranges. However, at different range, the upper
and/or the lower limits represent different values according to their respective
counts.
Note: 2. The Compare function can be used with other arithmetic functions such as REL,
MINMAX, and dBm modifiers.

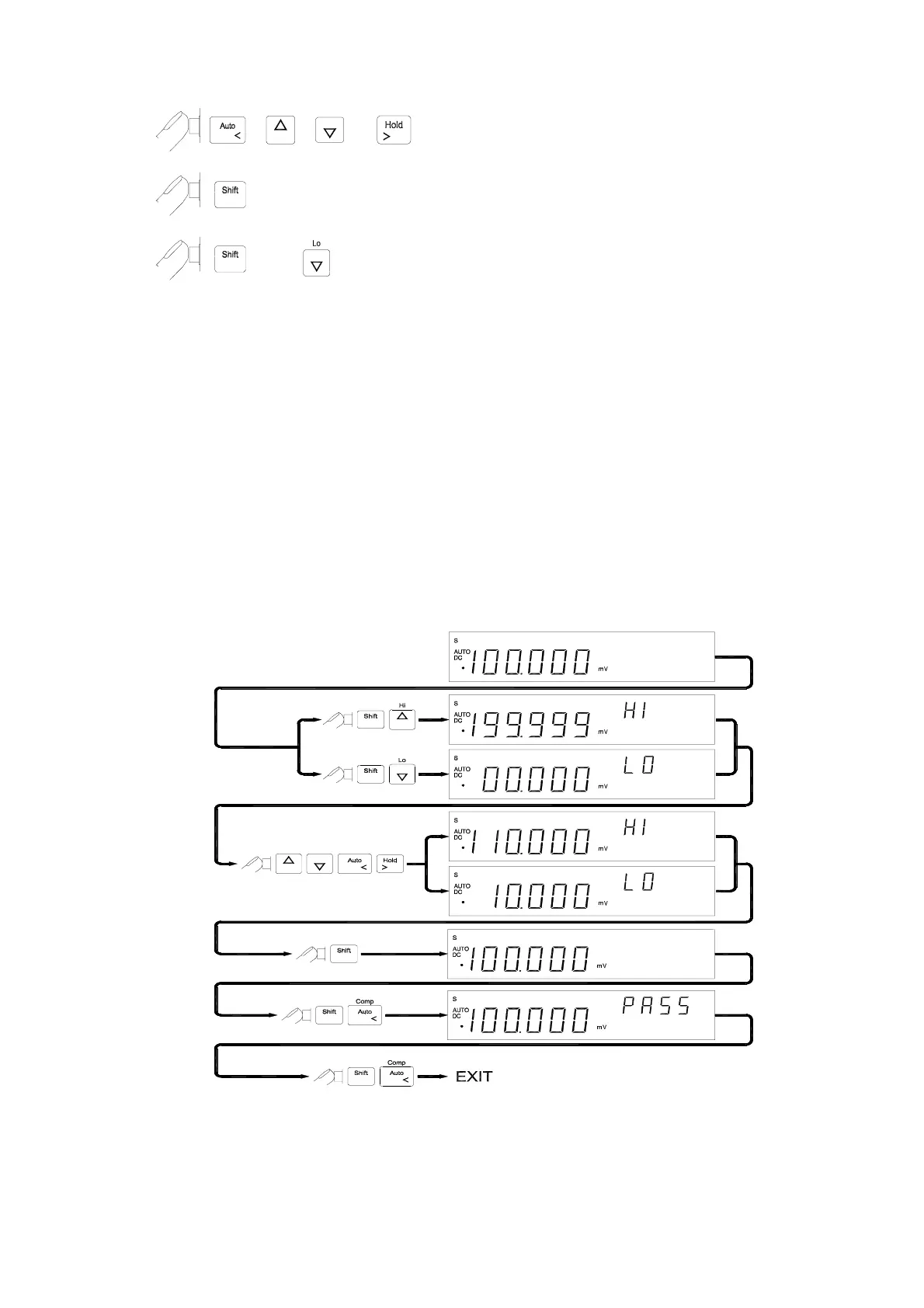

! Operation Example:
Setting up the compare limits “HI”, “LO”, or “PASS” for Vdc measurement.
