Front Panel Description
Power On/Off switch
Local button
Shift button
Numeric keypad
CC/OCP button
CW/OPP button
Enter/Recall settings button
Input On/Off and key lock button
CR button
CV/Setup button
Navigation arrow keys
Input terminal
Rotary knob
VFD display
ESC button
Recall button (Full-rack models)
Trig button (Full-rack models)
Pause button (Full-rack models)
1
11
4
5
6
7
9
10
8
15
3
13
14
2
16
17
18
19
20
1
2
3
4
5
6
7
8
14
12
13
9
10
11
15
16

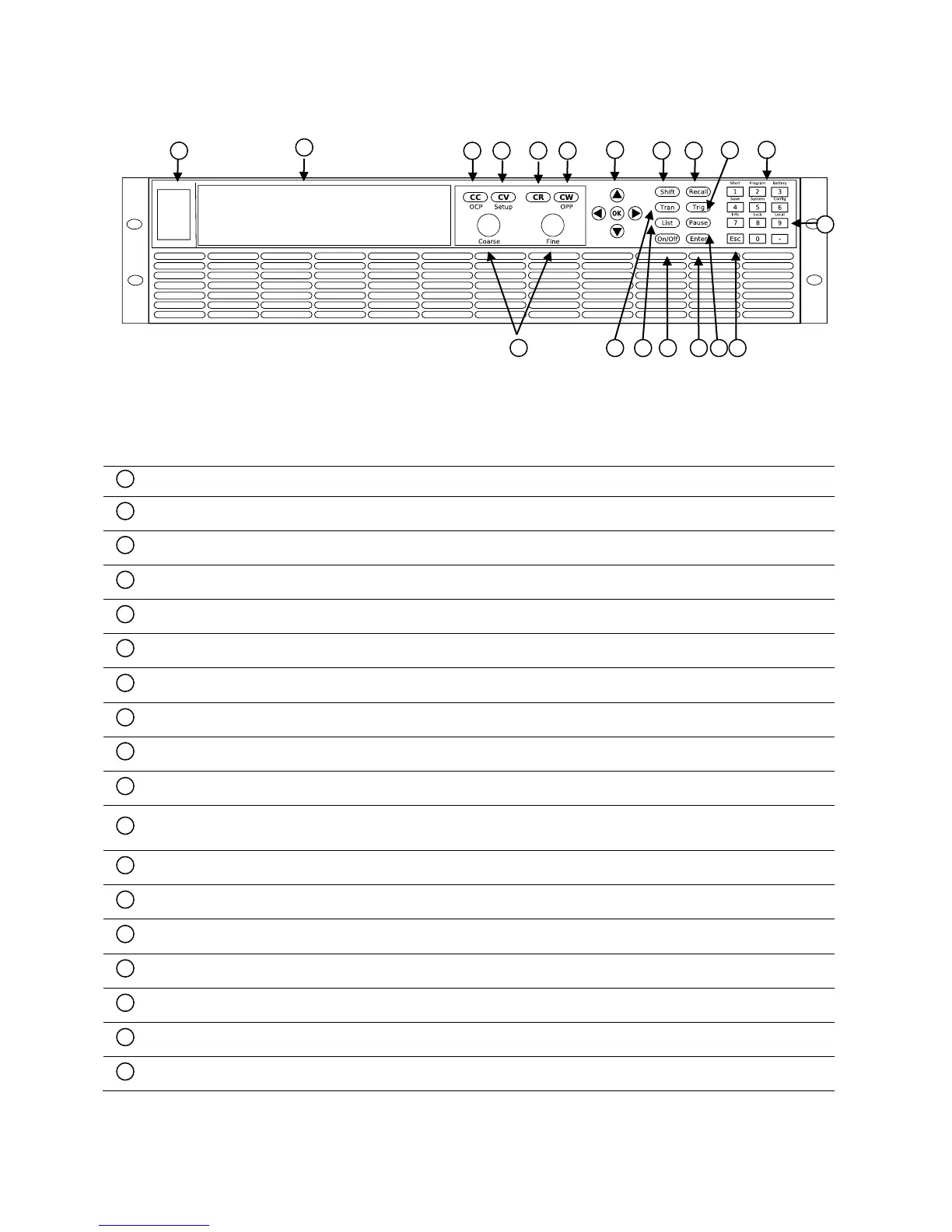

Figure 8 - Front Panel (Full-rack models)
