High
This parameter refers to the current high limit for the automatic test mode. During automatic
test mode, the device under test (DUT) must be operating below the configured value for the
test to PASS upon completion. If the DUT operates above the configured value, the test will FAIL
upon completion.
Note: This parameter is used for Automatic Test Function ONLY.
Low
This parameter refers to the current low limit for the automatic test mode. During automatic
test mode, the DUT must be operating above the configured value for the test to PASS upon
completion. If the DUT operates below the configured value, the test will FAIL upon completion.
Note: This parameter is used for Automatic Test Function ONLY.
Constant Resistance (CR) Mode

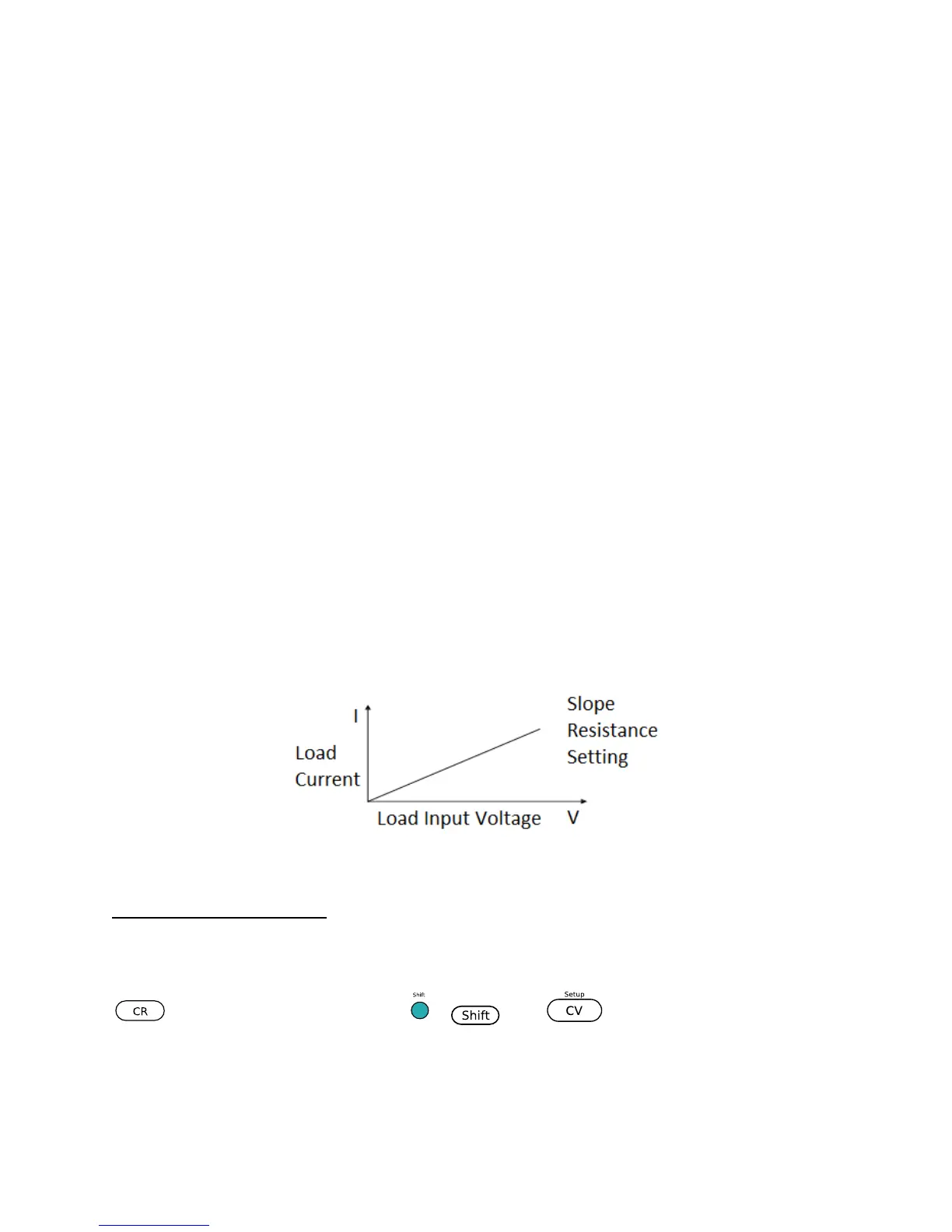

In this mode, the electronic load is equivalent to a constant resistance, as shown below. The
electronic load will linearly change the current, according to the input voltage.
Configure CR Parameters
There are several parameters that should be set up prior to operating in CR mode. Press
so that it lights up, then press ( )and to access Setup for CR mode.
The setup menu will be shown:
