BK Precision 9104 - Triangular and Trapezoid Waveforms

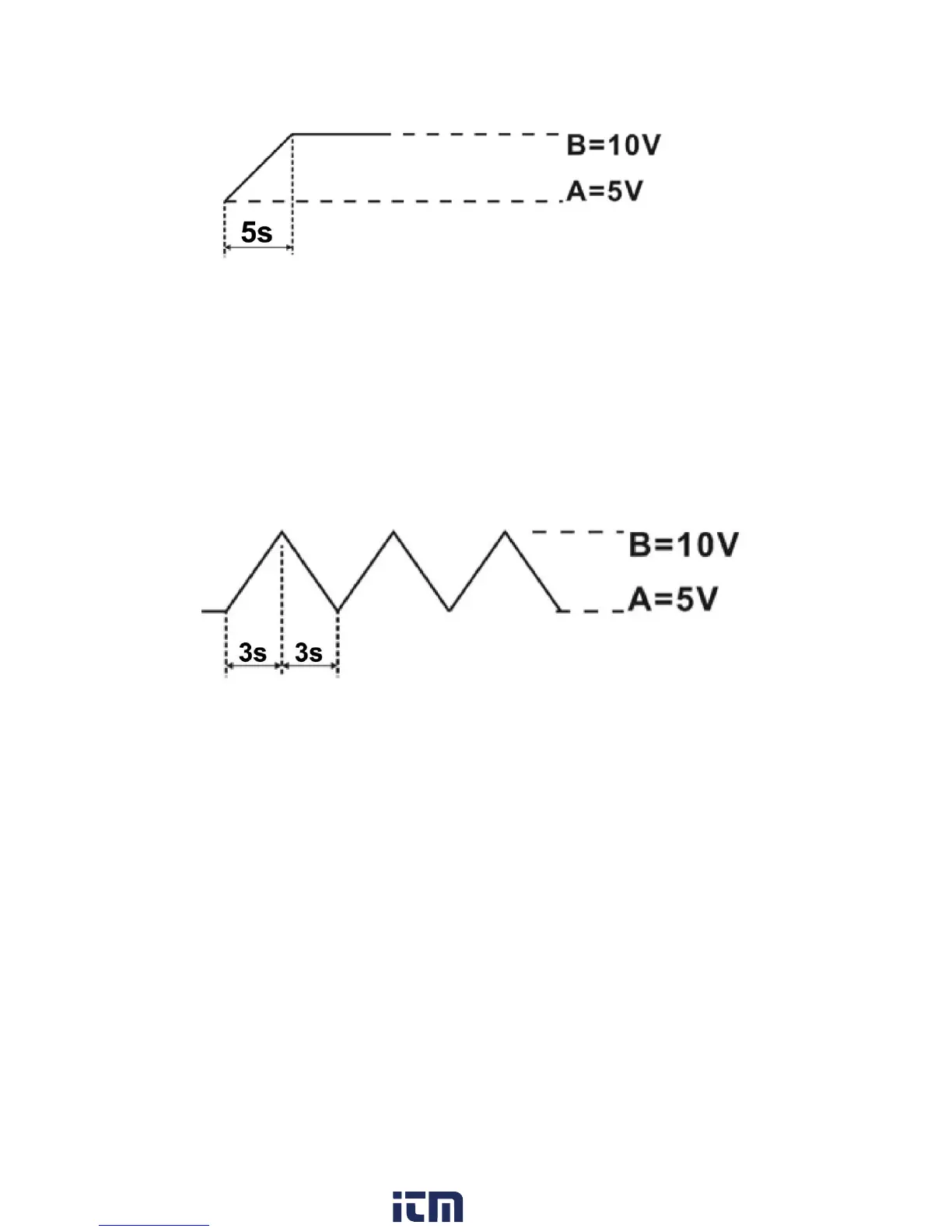

Example 3: Triangular
Using the same procedure as above
13. Set A = 5V , B = 10 V
14. Set Δt a-b = 3 seconds , Set Δt b-a = 3 seconds
15. Set Func. A = 3 seconds, Set Func. B = 3 seconds
Figure 14 - Transient Mode: Example 3
Example 4: Trapezoid
Using the same procedure as above
 Set A = 5V , B = 0 V
 Set Δt b-a = 3 seconds , Set Δt a-b = 8 seconds
 Set Func. A = 5 seconds, Set Func. B = 2 seconds
Figure 13 - Sequence Mode: Example 2
