BK Precision 9104 - Analog Voltage Control

d) Plug the remote connector plug into the analog remote control terminal of the power
supply.
e) Secure the remote connector plug to the terminal socket by screwing in the connector ring
(Figure 19).

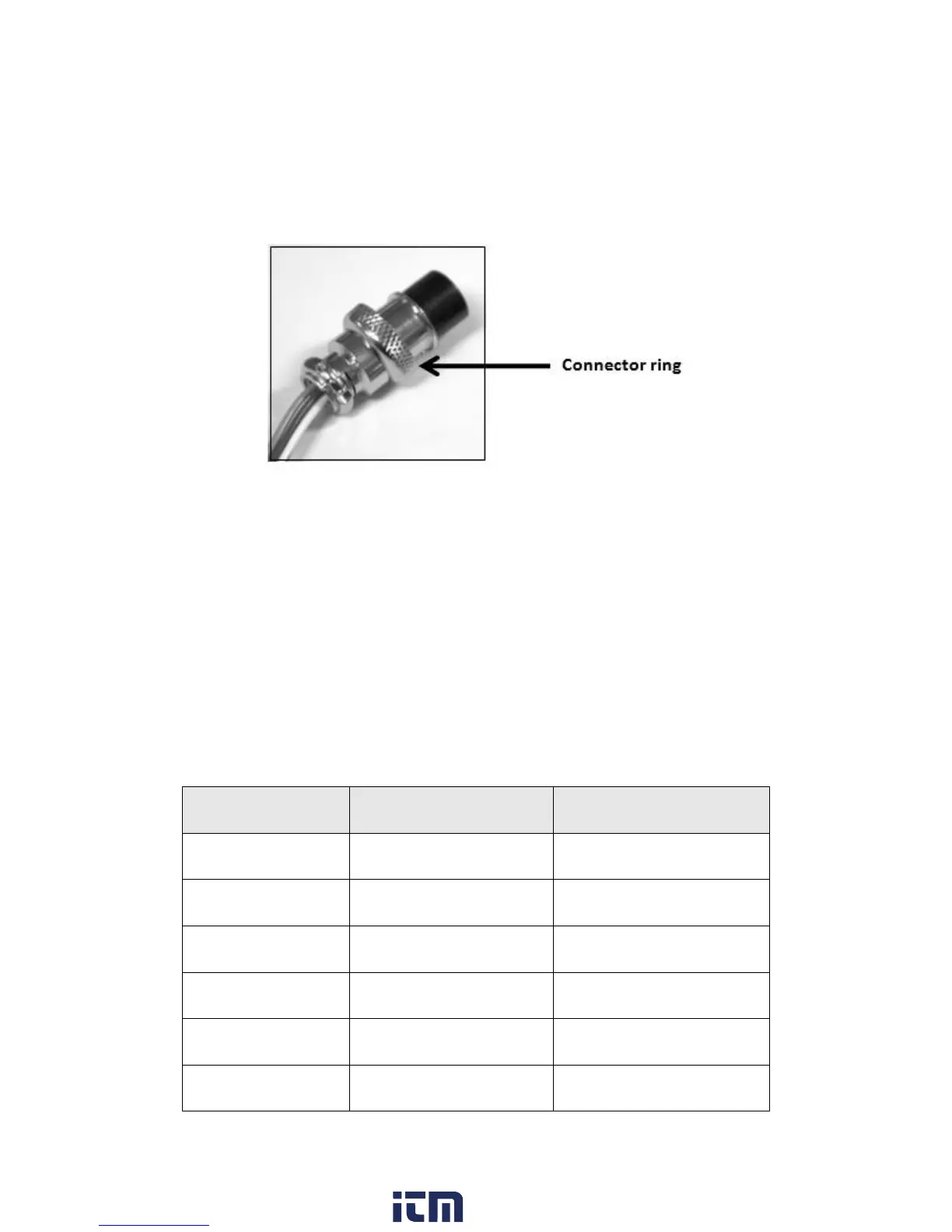

Figure 19 - Connector Ring
Then, you can choose one of the following two methods to use the analog remote control
feature:
 Using two external variable DC voltage sources, or
 Using two 5 kΩ variable resistors.
Analog Remote Control: Voltage Control
A variable external DC voltage source of 0 – 5 V is fed into the analog remote control terminal
to adjust the output voltage level of both Main and Auxiliary output.
PIN
FUNCTIONS
REMARKS
1
Internal DC +5 V
Less than 50 mA
2
Voltage Adjust
0 – 5 V
3
Current Adjust
0 – 5 V
4
Ground
5
Output OFF
Short to Ground
6
N/A
