BK Precision 9104 - Resistance Control Setup

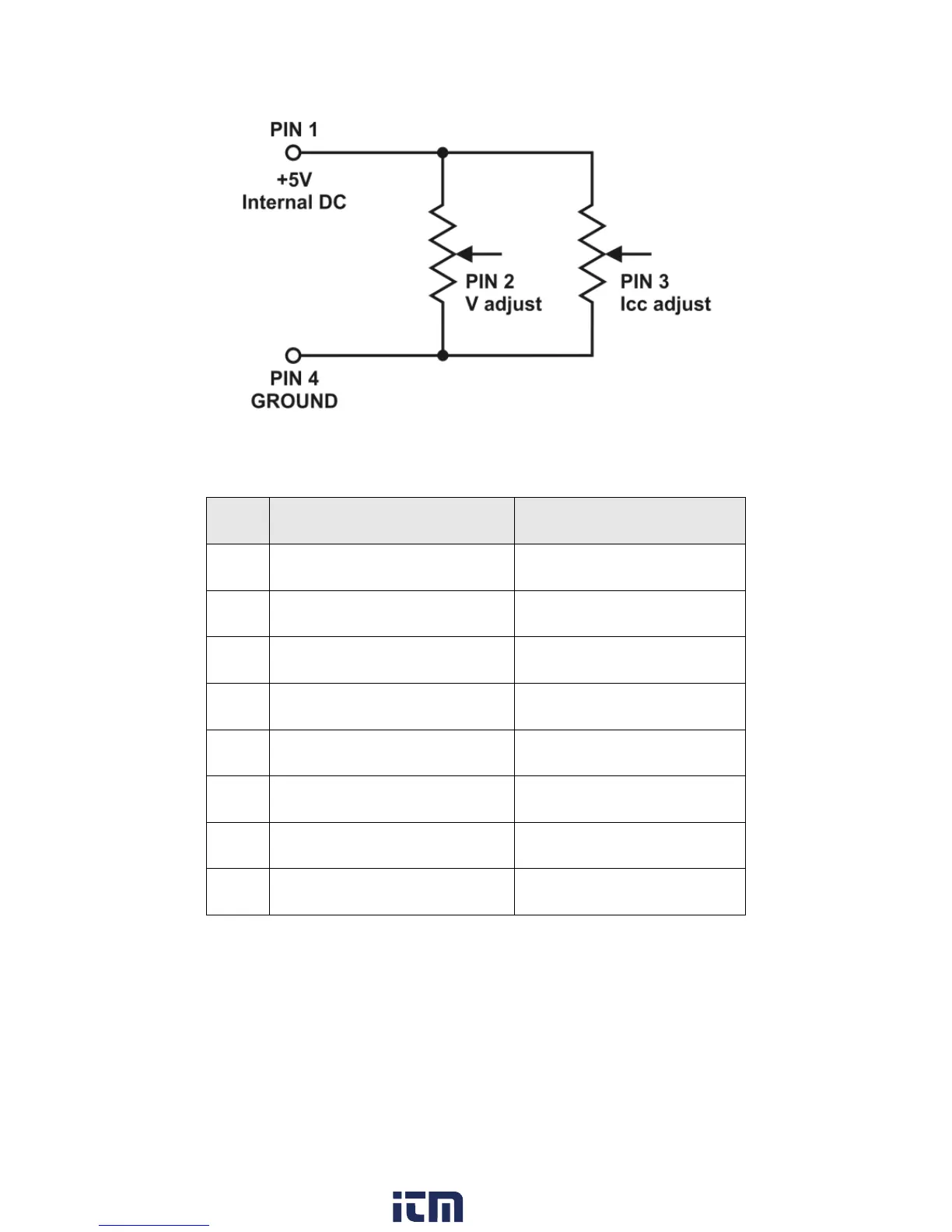

Figure 20 -Variable 5 kΩ Resistors Setup
PIN
FUNCTIONS
REMARKS
1
Internal DC +5 V
Resistor end
2
Voltage Adjust
Variable part of resistor
3
Current Adjust
Variable part of resistor
4
Ground
Resistor end
5
Output OFF
Short to Ground
6
N/A
7
N/A
8
N/A
Table 6 - Analog Remote Control Connector Pinout: Voltage Control
3. Turn the remote control ON/OFF switch to ON position.
4. Switch on the power supply.
5. Check the output voltage range of the power supply by varying the 5 kΩ variable resistor for
voltage adjustment.
