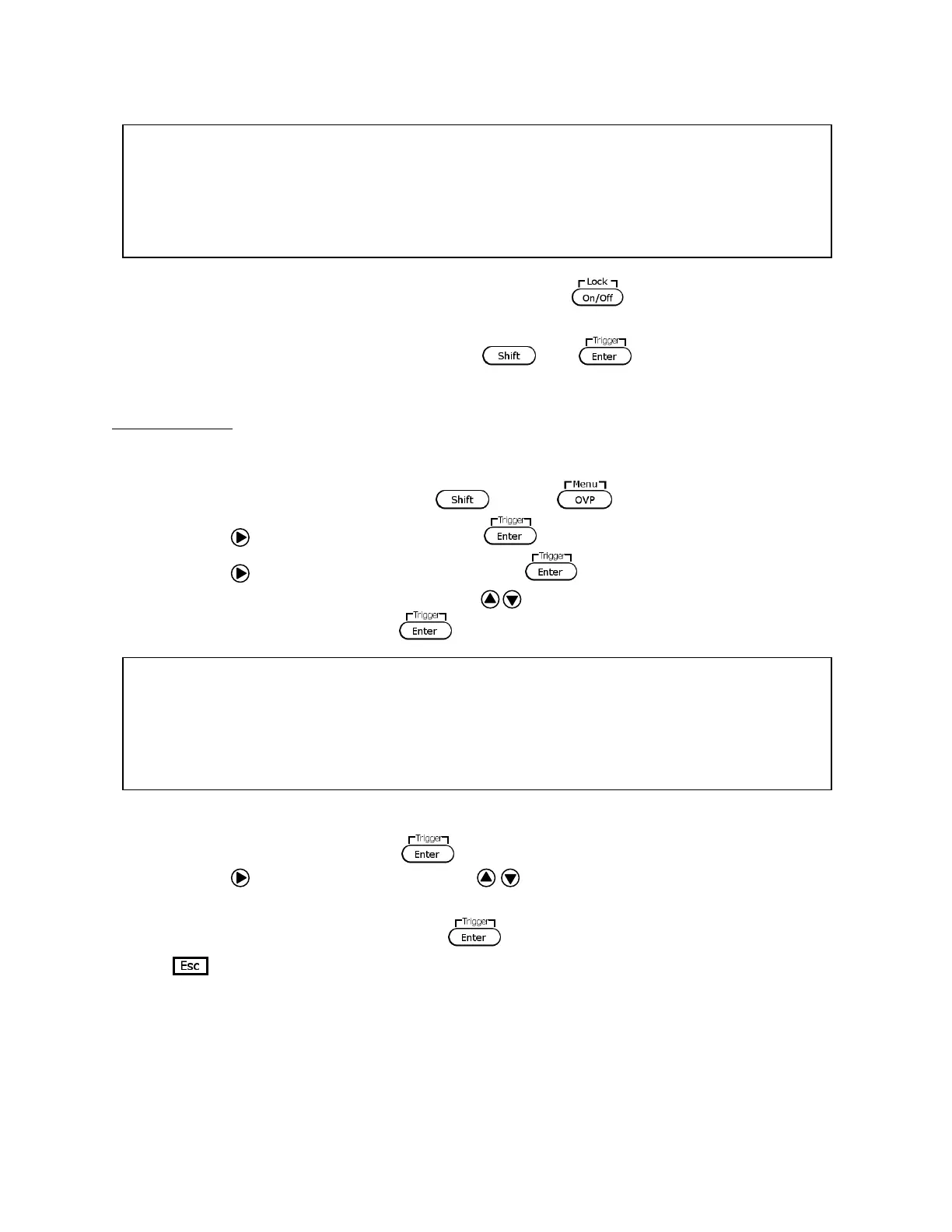

7. To enable the Short voltage drop function, press the key, on the front panel. The
proper voltage (12V or 24V) should be metered on the front panel display.
8. To run Short voltage drop function press and to trigger the test to run.
9. Repeat step 8 to trigger the function to run as many times as needed.
Profile for reset
Follow the steps below to set up the ISO16750-2 Profile for the reset test function:
1. Access the main menu by pressing and the .
2. Use the key to select FUNC. and press .
3. Use the key to select ISO16750-2 and press . The screen below will display:
4. While Short voltage drop is flashing, use keys to toggle to Profile for the reset
test (shown below) and press to access that option.
5. Select Usmin… and press enter. The user can choose a Usmin value between 1 V – 80 V.
Once a value is selected, press to confirm.
6. Use the key to select Off/On and use keys to toggle between the two options.
Choose On to be able to run the function.
7. Once both parameters are set, press to confirm the changed settings and press
several times to exit the menu. If the Starting profile function was setup properly,
the Trig indicator will be highlighted and Profile for the reset test will be shown on the
front panel, shown below.
Profile for the reset test
To Next Page
