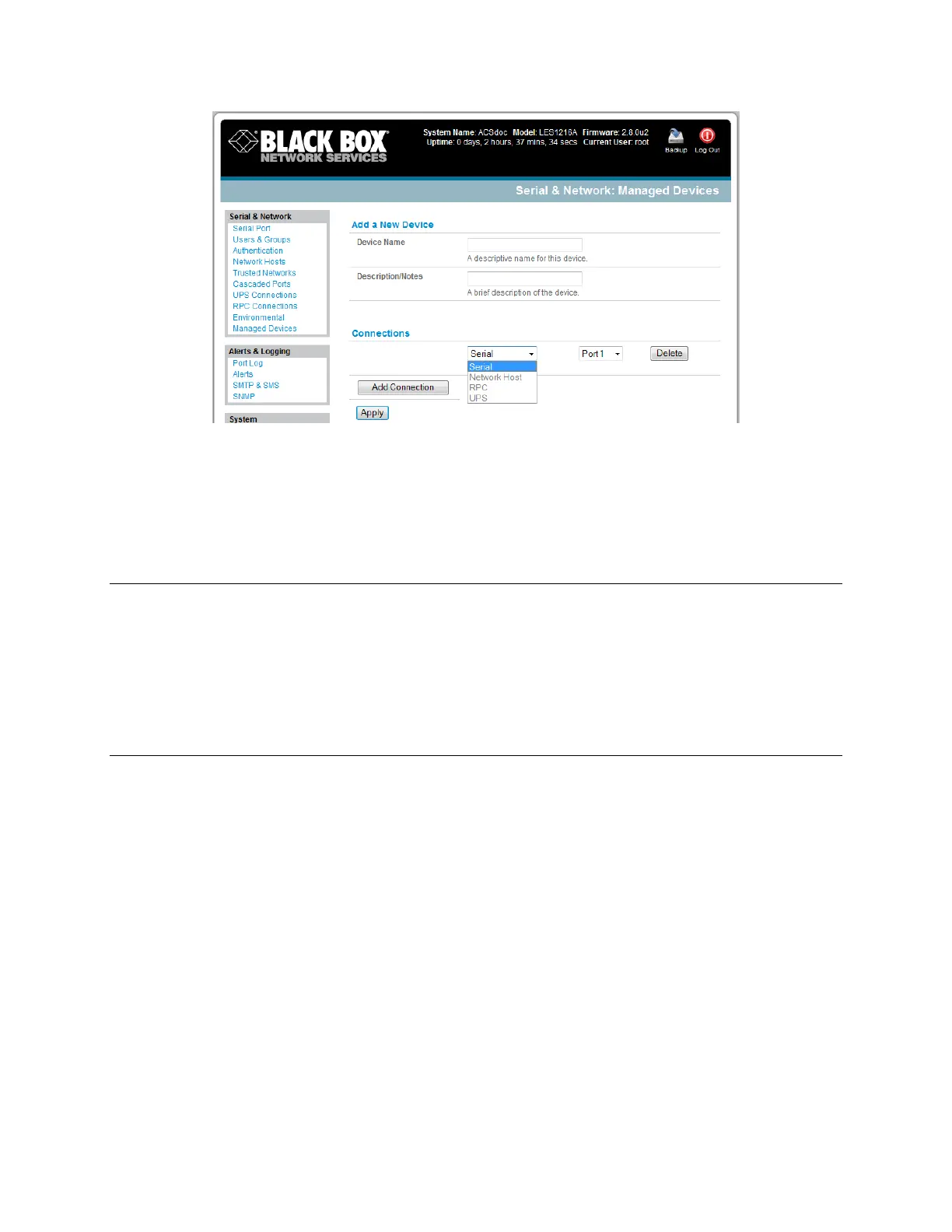

Click Add Connection and select Serial and the Port that connects to the Managed Device.
To add a UPS/RPC power connection or network connection or another serial connection, click
Add Connection.
Click Apply.
Note To set up a new serially connected RPC UPS or EMD device, configure the serial port, designate
it as a Device, then enter a Name and Description for that device in the Serial & Network: RPC
Connections (or UPS Connections or Environmental). When applied, this will automatically
create a corresponding new Managed Device with the same Name /Description as the RPC/UPS
Host (refer to Chapter 8—Power and Environment).
All the outlet names on the PDU will by default be ―Outlet 1‖ and ―Outlet 2.‖ When you connect a
particular Managed Device (that draws power from the outlet) then the outlet will then take up the
name of the powered Managed Device.
