BMC H-80 Series User Manual

H-80 Series User Manual V1.0
24 / 46

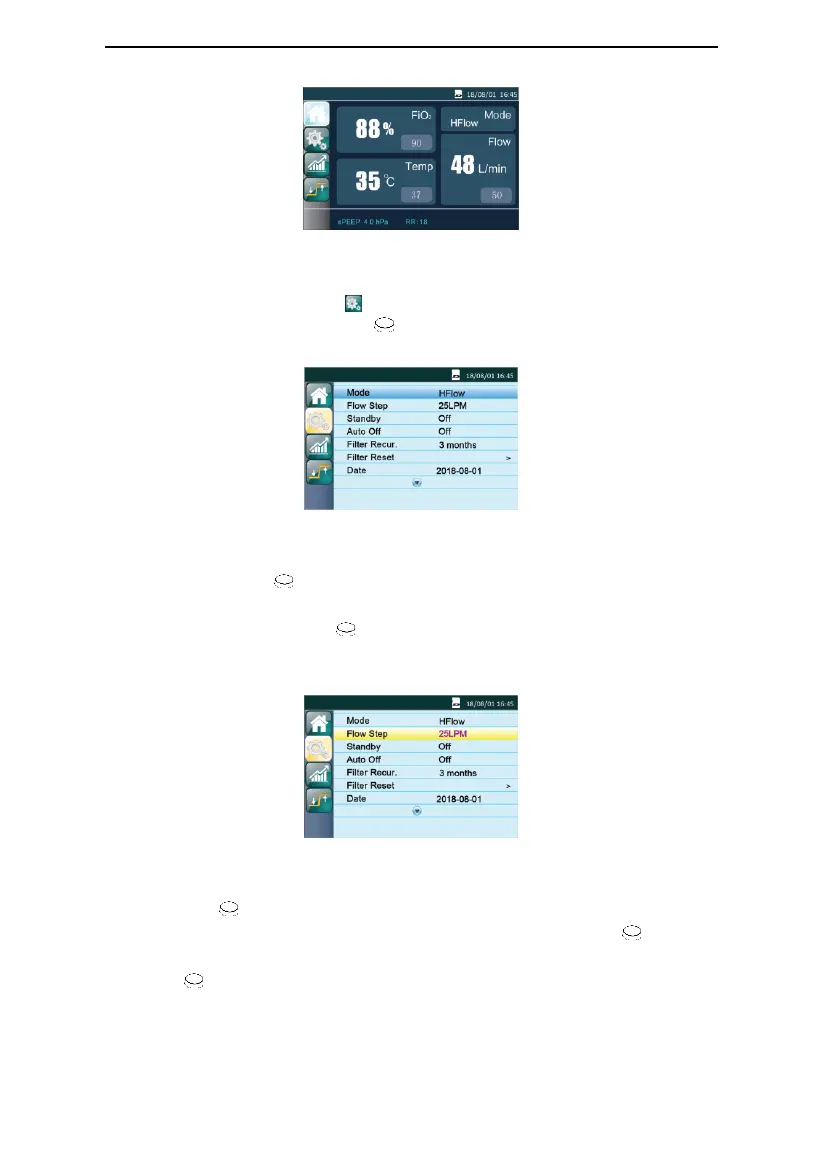

Fig. 13-7
13.1.7 Accessing the Setup Interface
When the cursor stays on the icon , the screen displays the Setup Interface. Access the
Setup Interface by pressing the Knob . The first option on the Setup Interface is then
displayed in blue, as shown in Fig. 13-8.
Fig. 13-8
13.1.8 Selecting Options
As you turn the Knob clockwise, the cursor moves downwards from one option to
another. As you turn it counterclockwise, the cursor moves upwards. When the cursor stays
on one option, press the Knob , the option will enter the adjustable state, and the
background color of the option which enters the adjustable state is yellow, as shown in the
―Flow Step‖ column in the Fig. 13-9.
Fig. 13-9
13.1.9 Adjusting Options
Turn the Knob to change the working parameter. The option ―Flow Step‖ is selected
from the menu in the above figure, at this moment. As you turn the Knob clockwise,
the value of ―Flow Step‖ on menu will increase, as shown in the figure below. As you turn
the Knob counterclockwise, the value will decrease, and the background color of the
―Flow Step‖ option is still yellow, as shown in Fig. 13-10.
