BMC H-80 Series - Confirming Adjustments; Turning Pages; Exiting the Setup Interface

H-80 Series User Manual V1.0
25 / 46

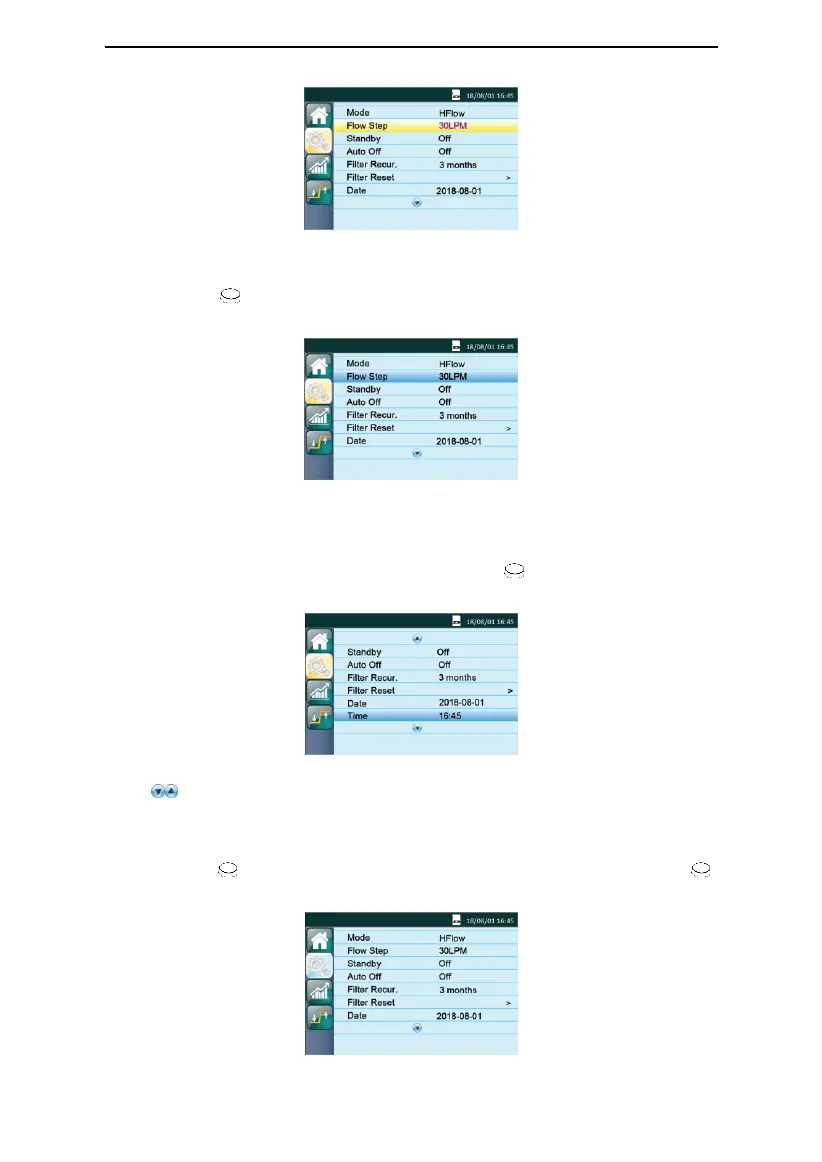

Fig. 13-10
13.1.10 Confirming Adjustments
Press the knob after selecting the parameter, the parameter will be confirmed, and the
background color of the option will become blue, as shown in Fig. 13-11.
Fig. 13-11
13.1.11 Turning Pages
When the cursor is on ―Date‖, the last option shown in Fig. 13-11, the remaining options will
appear on a new page if you continue to turn the Knob clockwise, as shown in Fig.
13-12.
Fig. 13-12
Note: are page turning symbols.
13.1.12 Exiting the Setup Interface
(1) Returning to the Initial Setup Interface
Turn the Knob to make the cursor stay on icon ―Back‖, and then press the Knob ,
the screen displays the Initial Setup Interface, as shown in Fig. 13-13.
Fig. 13-13
