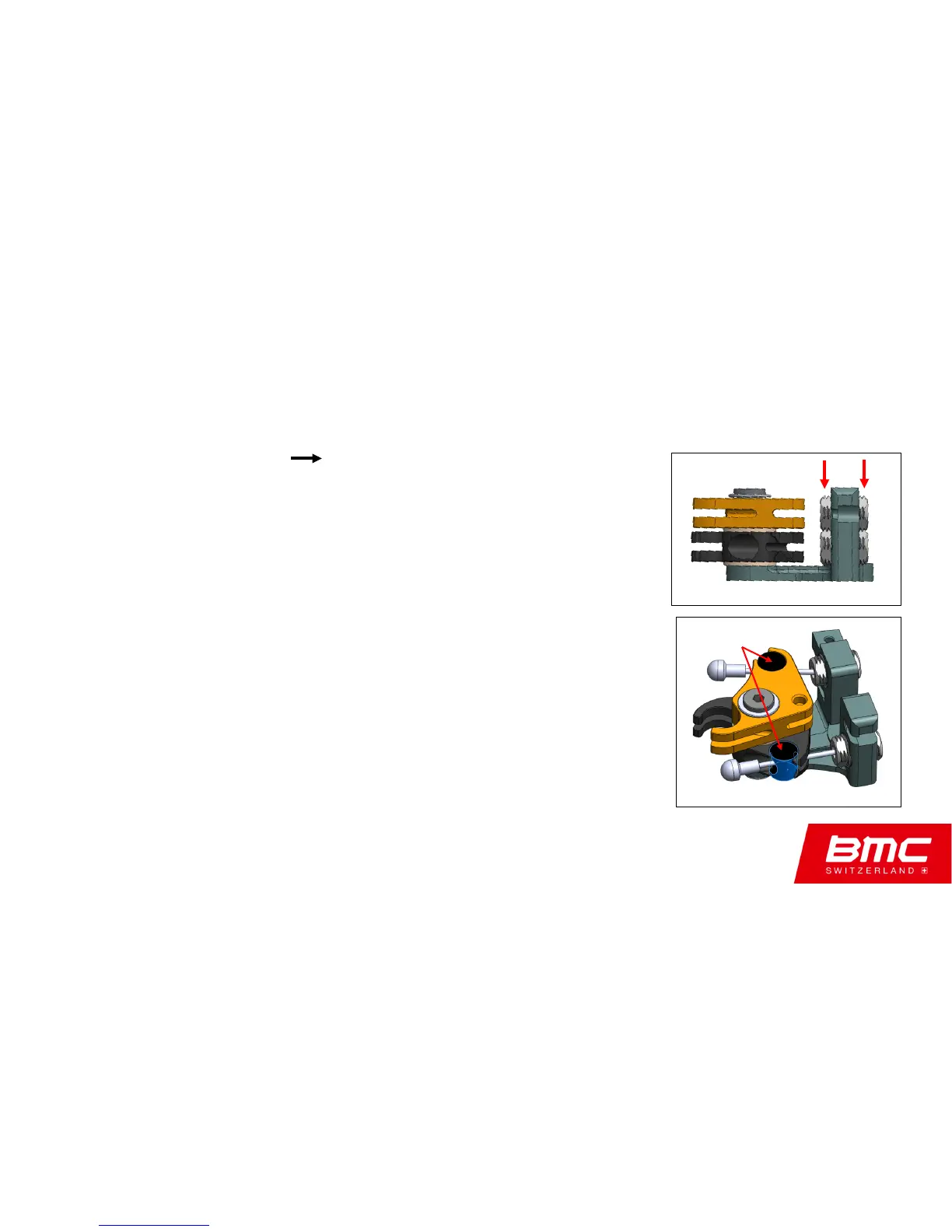

Brake Housing & Cable Installation
1. Prepare the Brake Booster for the next steps by centering the
position of the Housing Boss (same distance front and back)
2. Mount the brake cables at the Brake Booster to the brakes
using Cable Interfaces.
Step 1
Cable Interface
Step 2
Brake Booster Brake Calipers
