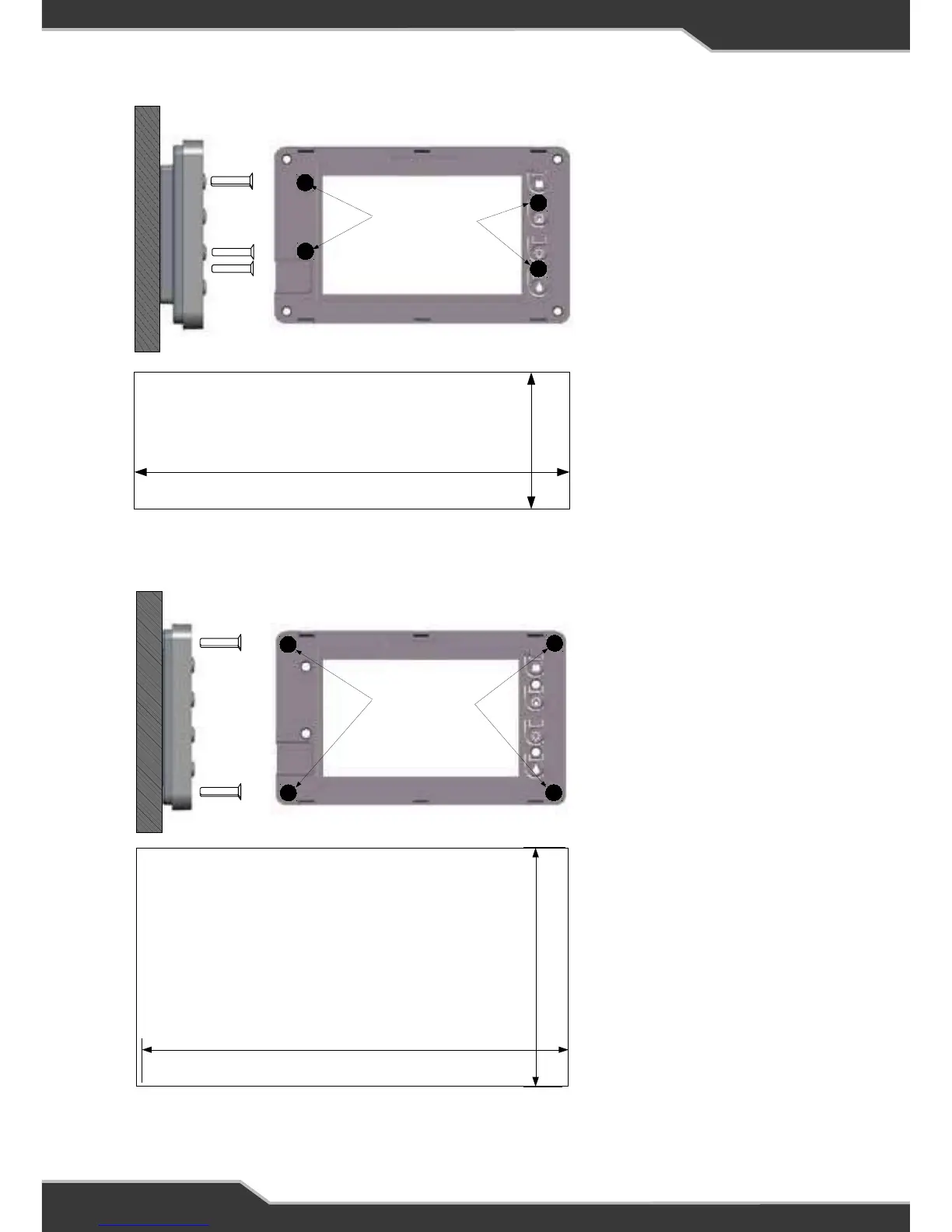

Figure 6: Mounting Method 2 (RECESS) Details
Screw requirement for mounting method 2:
Screw type: Counter sunk
Diameter: 3.5mm max
Length: 20mm min
19
Figure 6: Mounting Method 2 (RECESS) Details
Mounting Holes
Countersunk screws
Recommended
74mm
134mm
Suggested cut out
size for Recessed mount
Screw requirement for mounting method 2:
Screw type: Counter sunk
Diameter: 3.5mm max
Length: 20mm min
19
Figure 6: Mounting Method 2 (RECESS) Details
Mounting Holes
Countersunk screws
Recommended
74mm
134mm
Suggested cut out
size for Recessed mount
Screw Requirements
Mounting Method 2
Screw type: Counter sunk
Diameter: 3.5mm Max
Length: 20mm Min
After fixing Trek to the wall attach the provided front fascia plate to Trek. This
fascia clips on to the front of Trek.
Screw requirement for mounting method 1:
Screw type: Counter sunk
Diameter: 4.0mm Max
Length: 25mm Min
18
Figure 5: Mounting Method 1 Details
Mounting Holes
Countersunk screws
Recommended
33mm
105mm
Suggested cut out
size for Flush mount
After fixing Trek to the wall attach the provided front fascia plate to Trek. This
fascia clips on to the front of Trek.
Screw requirement for mounting method 1:
Screw type: Counter sunk
Diameter: 4.0mm Max
Length: 25mm Min
18
Figure 5: Mounting Method 1 Details
Mounting Holes
Countersunk screws
Recommended
33mm
105mm
Suggested cut out
size for Flush mount
Figure 5: Mounting Method 1 Details
Screw Requirements
Mounting Method 1
Screw type: Counter sunk
Diameter: 4.0mm Max
Length: 25mm Min
