Water Tank Level Wiring
Digital Sensor
1. Empty the water from the tank(s)
2. Choose a suitable side of the tank where the level-sensing can be located.
3. Drill the required hole in the tank
4. Install the tank sensor to the tank
5. Connect sensor connector to the water tank loom
6. Fill the tank(s) and check for water leaks around the bungs. Reseal as necessary.
7. Test operation of water level sensors, water pump switch, and Battery on/off switch.

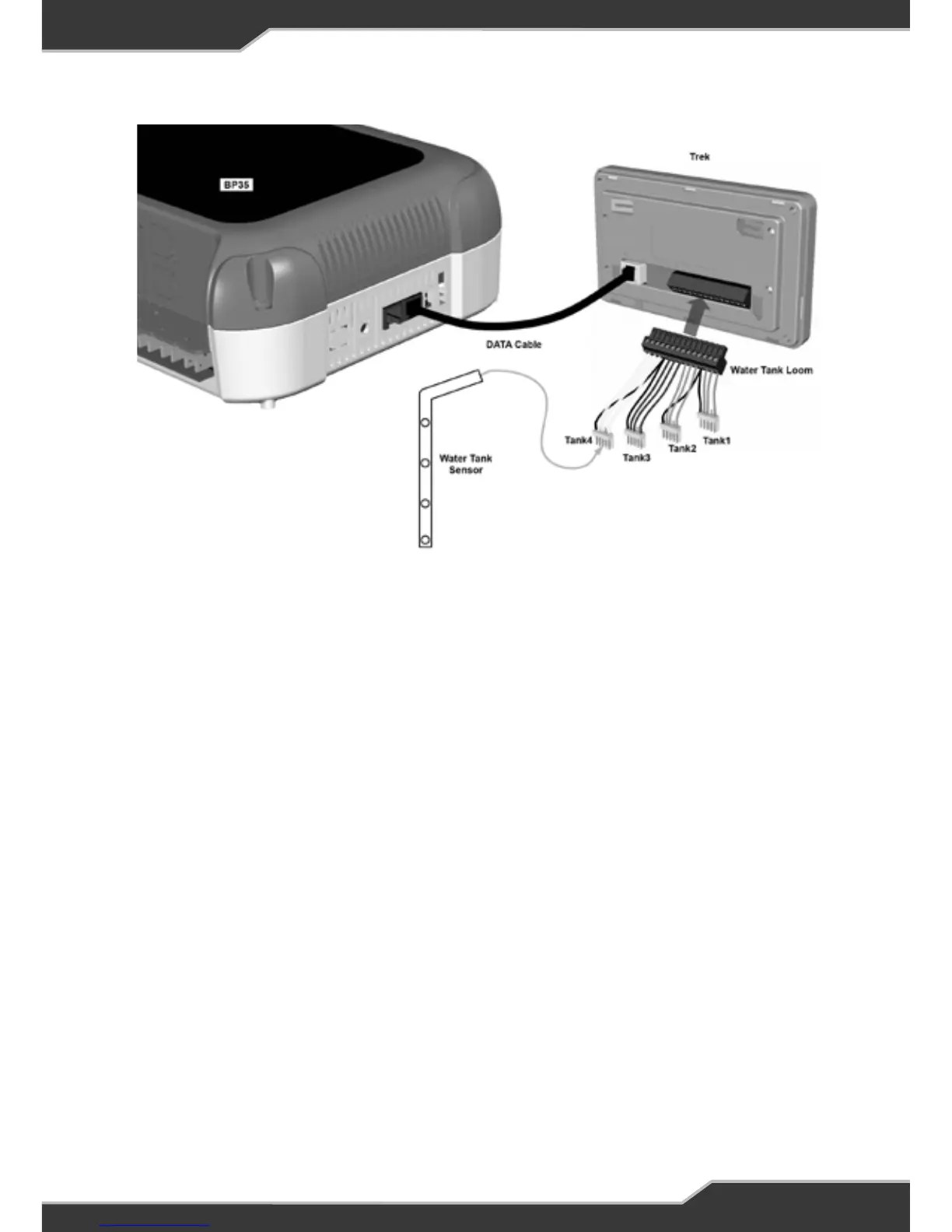

Figure 7: Trek to BatteryPlus35 Wiring
