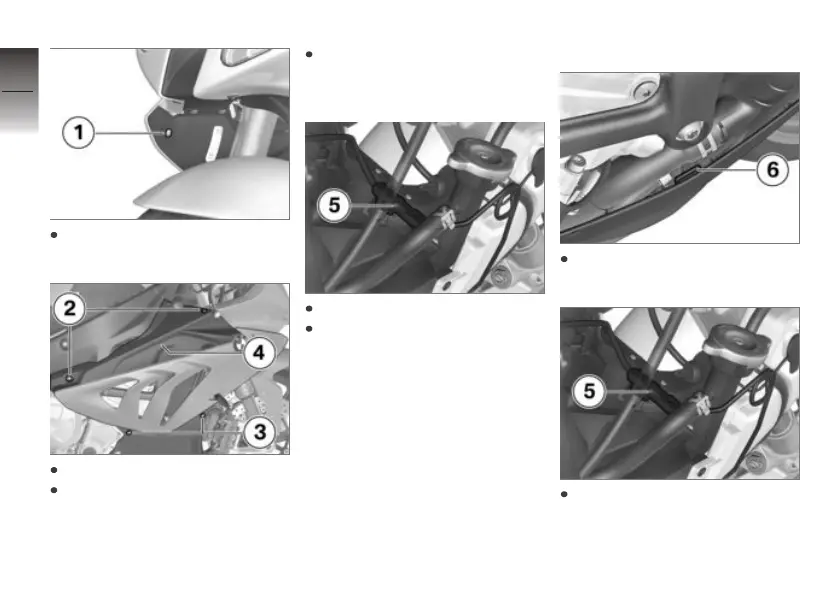

Remove screw 1 on the in-
board side of the side panel.
Remove screws 2.
Remove screws 3 with the
washers.
Pull the fairing side panel at
position 4 to disengage it from
the rubber buffer and remove.
Disconnect plug 5.
Remove the side panel.
Installing side panel
Engage the fairing side panel in
mount 6 on the engine spoiler.
Connect plug 5.
9
138
z
Maintenance
