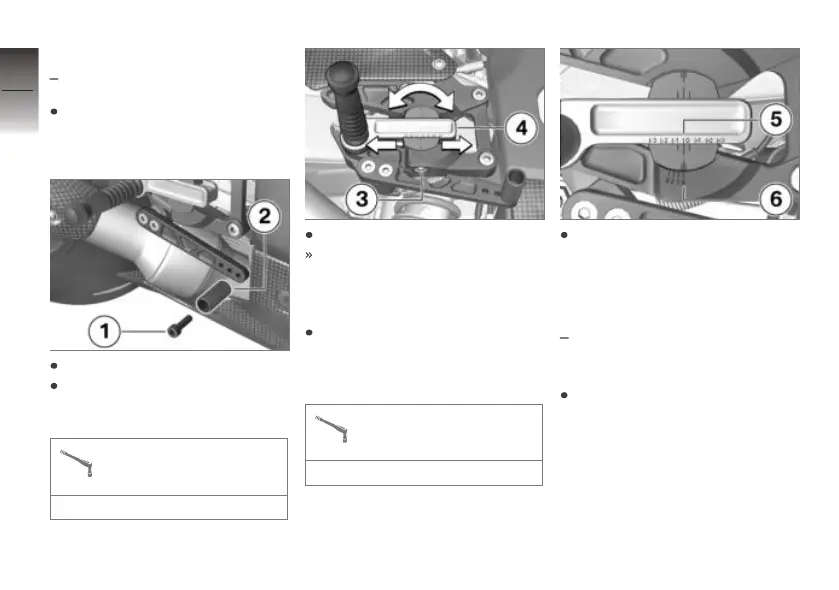

Adjusting footbrake lever
with Competition Kit
OE
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Remove screw 1.
Hold peg 2 in the desired posi-
tion and tighten screw 1 to the
specified tightening torque.
Peg on pedal
10 Nm
Slacken screw 3.
The footrests can be moved 4
forwards/backwards and tilted
upwards/downwards using the
sliding action.
Move footrest 4 into the
desired position and tighten
screw 3 to the specified
tightening torque.
Clamping of the adjusted
footrests
28 Nm
In order to restore the factory
settings, align scales 5 and 6
to zero.
Shift mechanism
with Competition Kit
OE
Adjusting shift lever
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
4
50
z
