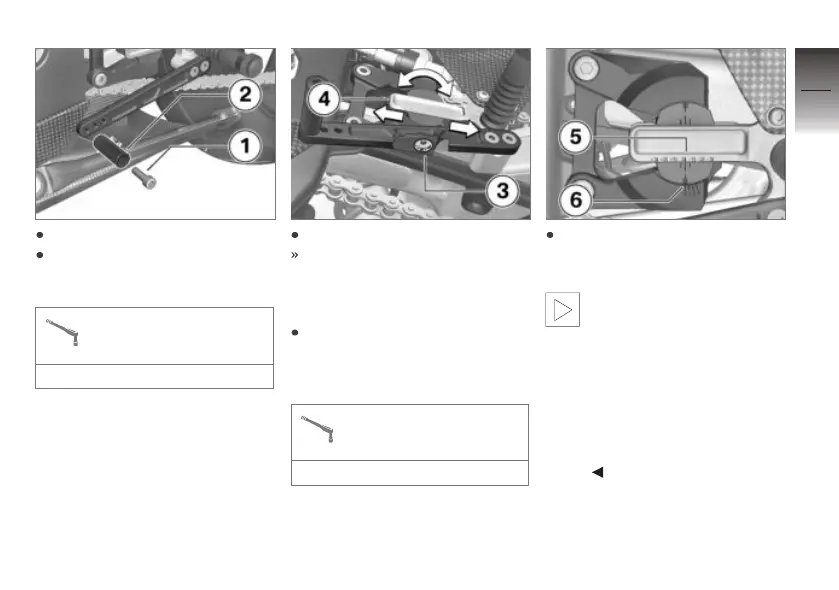

Remove screw 1.
Hold peg 2 in the desired posi-
tion and tighten screw 1 to the
specified tightening torque.
Peg on pedal
10 Nm
Slacken screw 3.
The footrests can be moved 4
forwards/backwards and tilted
upwards/downwards using the
sliding action.
Move footrest 4 into the
desired position and tighten
screw 3 to the specified
tightening torque.
Clamping of the adjusted
footrests
28 Nm
In order to restore the factory
settings, align scales 5 and 6
to zero.
By adjusting the footrest,
the position of the shift
lever changes. A poorly adjusted
shift lever has a negative effect
on the shift ability of the gearbox.
To adjust the height of the
shift lever, seek the advice of a
specialist workshop, preferably
an authorised BMW Motorrad
dealer.
