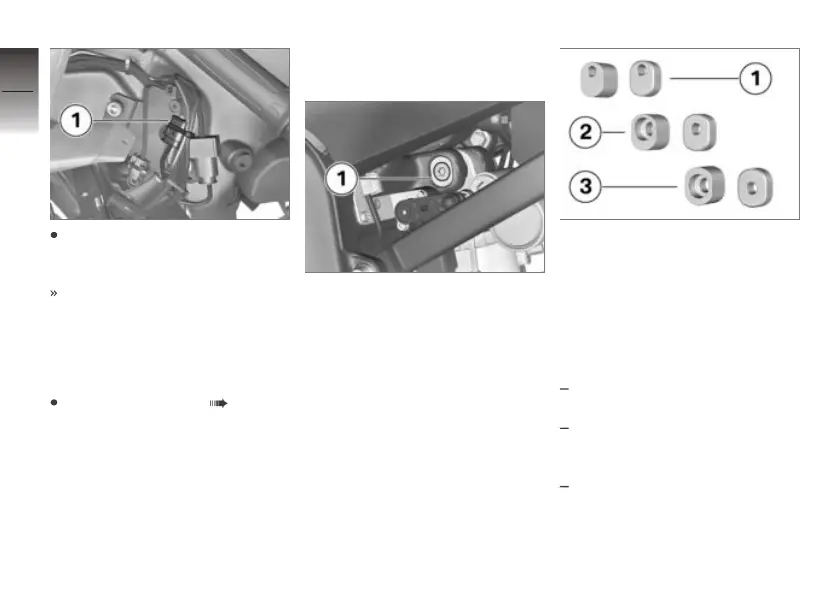

Remove protective cap from
plug1 und connect height
sensor plug.
In the SETUP-menu, the
damping on the front wheel
can be adjusted separately
from rebound and compressing
damping.
Installing side panel ( 138).
Running gear
Height adjustment
In order to customise the
suspension height, the left and
right slide blocks 1 can be
replaced on the suspension strut
screw joint.
Attached to the vehicle are two
pairs of slide blocks with different
drill holes. The blocks in each
pair can be turned 180°, so to-
gether with the blocks installed
ex-works there are five possible
height settings (-3 mm, -1.5 mm,
0 mm, +1.5 mm, +3 mm).
1 slide blocks with a drill hole 3
mm off-centre.
2 slide blocks with a drill hole
1.5 mm off-centre; these are
installed at the factory.
3 slide blocks with a central
drill hole.
6
102
z
On the race track
