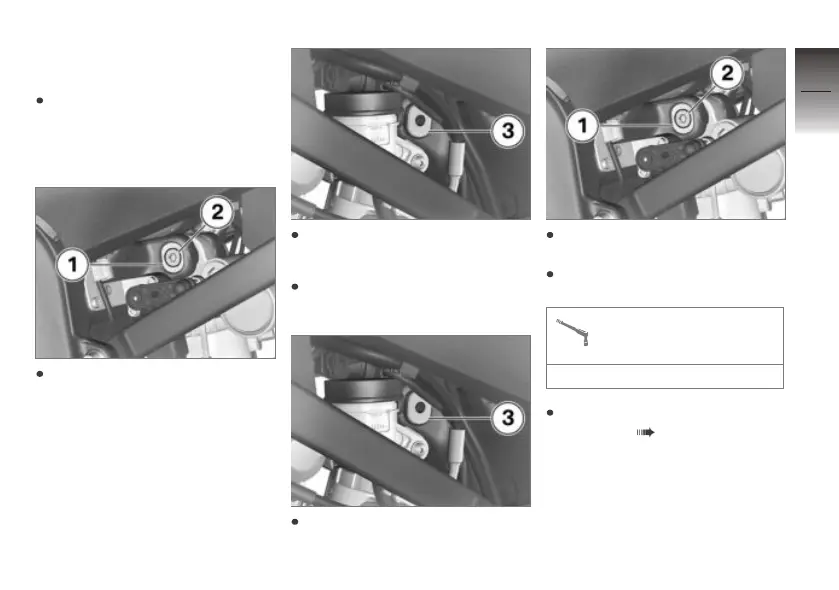

Adjusting height of
suspension
Lift the motorcycle using
a suitable auxiliary stand
to relieve pressure on the
suspension strut.
Remove screw 2 and remove
sliding block 1.
Remove slide block 3 on the
right hand side.
Select a pair of slide blocks ac-
cording to the desired height.
Adjust narrow threaded slide
block 3 on the right hand side.
Adjust wide recessed slide
block 2 on the right hand side.
Install screw 1 and tighten to
specified torque.
Spring strut to relay lever
56 Nm
Performing a zero position
alignment ( 101).
