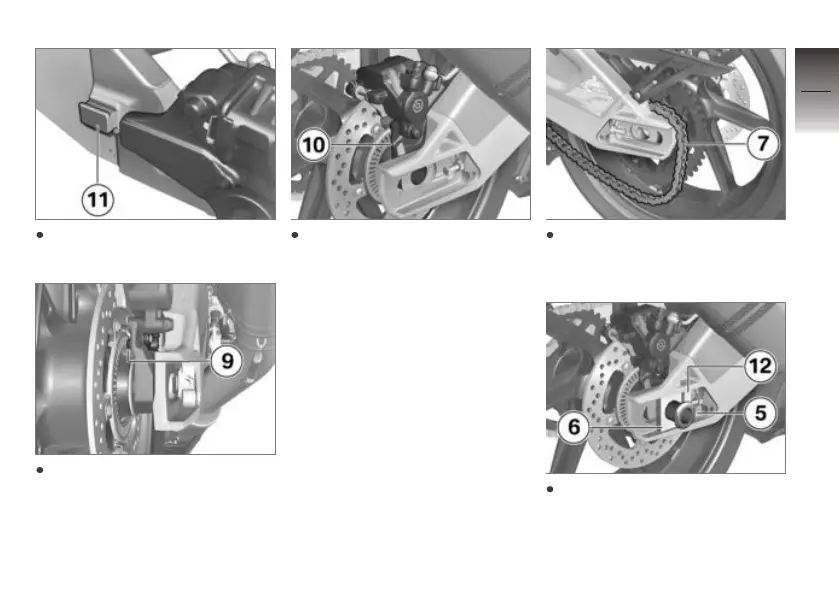

Insert the brake-caliper carrier
into the guide 11.
When rolling the rear wheel
into position, take care not to
damage wheel-speed sensor 9.
Roll the rear wheel further into
the swinging arm, while push-
ing brake-caliper carrier 10 for-
ward at the same time.
Roll the rear wheel as far
forward as possible and loop
chain 7 over the sprocket.
Insert right adjusting plate 6
into the swinging arm with
stop 12 to the front.
