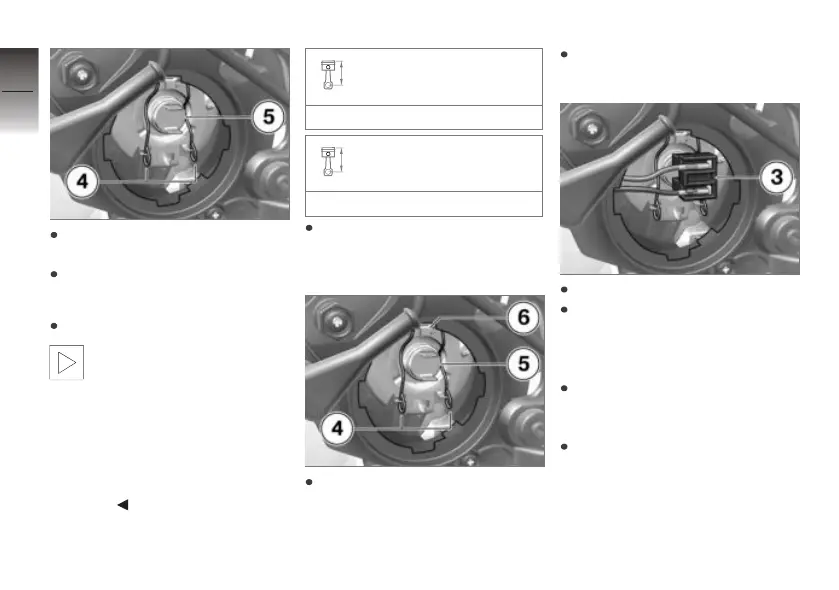

Release spring clip 4 at left
and right and swing it up.
Remove bulb 5 from the
socket.
Replace the defective bulb.
Bulbs with higher light-
intensity ratings are avail-
able through aftermarket suppli-
ers. These bulbs burn out more
rapidly and generate more heat
than conventional bulbs. Un-
der adverse conditions the extra
heat can cause damage to the
headlight.
Bulbs for the low-beam
headlight
H7 / 12 V / 55 W
Bulb for high-beam
headlight
H7 / 12 V / 55 W
Hold the bulb by the base only,
in order to keep the glass free
of foreign matter.
Install bulb 5. Begin by seating
lug 6 and then press the bulb
into the socket.
Engage spring clip 4 in the
catch on left and right.
Connect plug 3.
Install the cover.
Replacing bulb for left
parking light
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Switch off the ignition.
