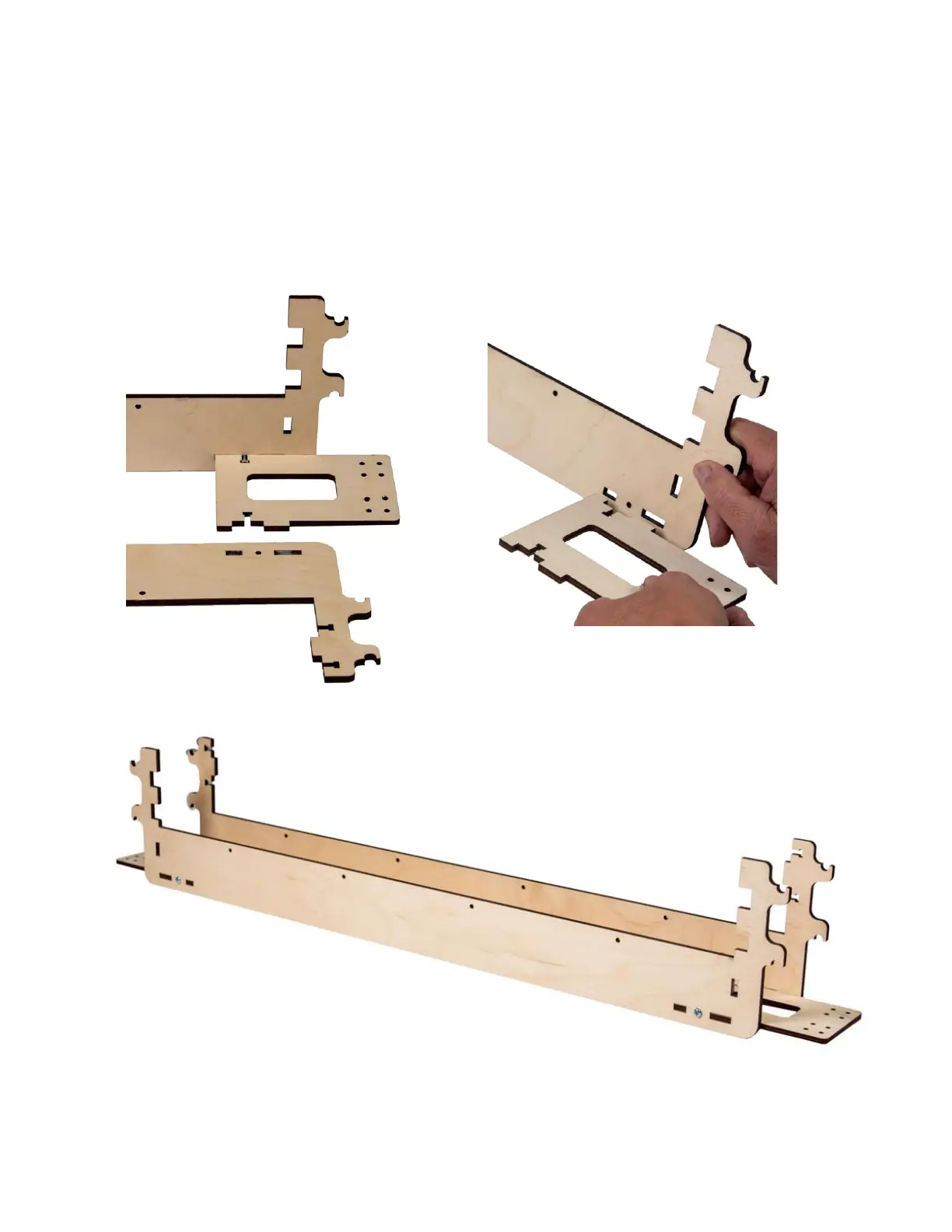

Step 8 Using the Extension Frame Mid Support (EX4), align the tabs of
the Wire Harness Support (X7) with the slots and secure with
two M4 x 16 Machine Screws and Nuts for each end as shown.
Align and mount the Frame Mid Support (X4) to the Mid Frame
Assembly.
X4
EX4
Repeat for the remaining Wire Harness Support (X7)
Completed Mid Frame Assembly
