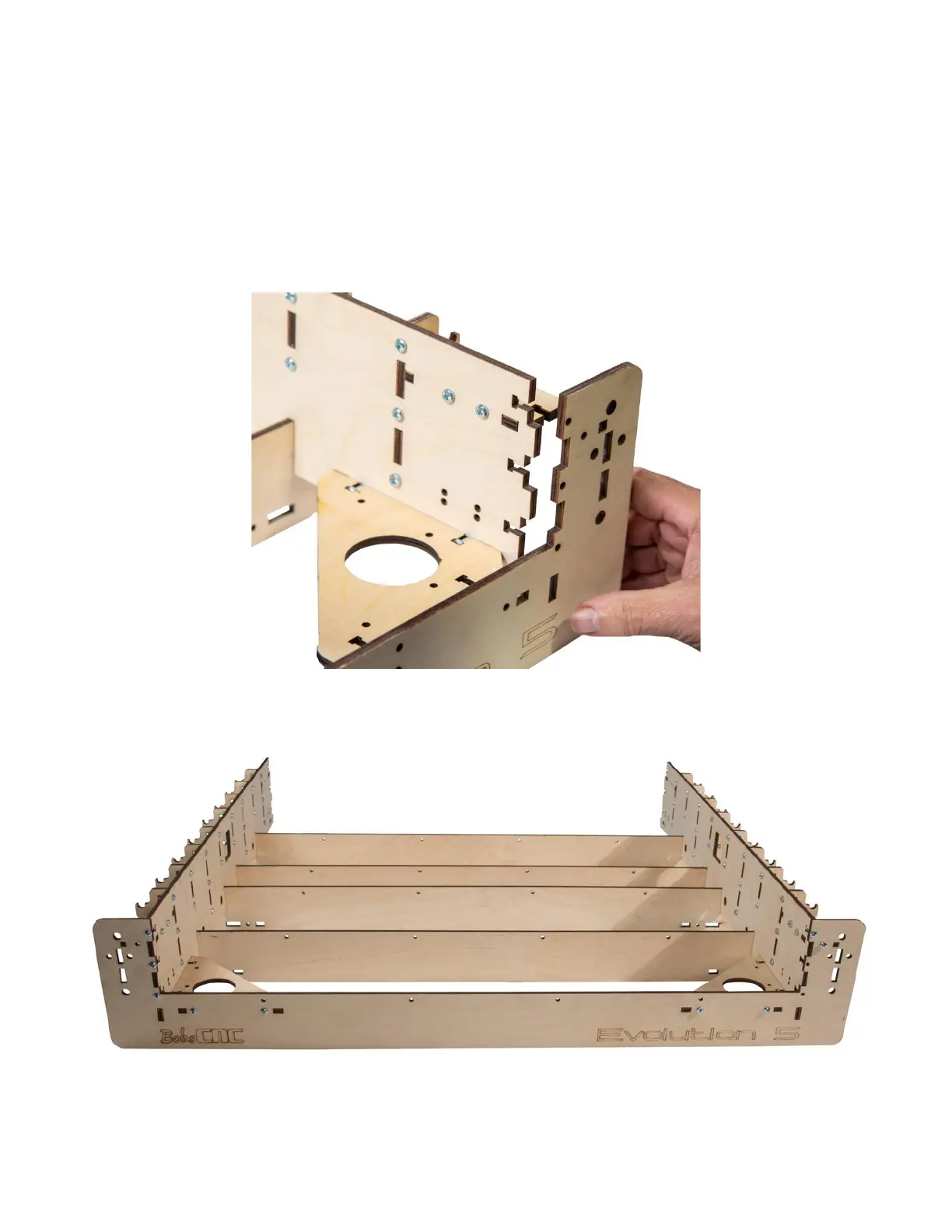

Step 7 Align the slots in the Frame End Support (X6) with the tabs in
the Front X Frame Assembly and secure with six M4 x 16 Screws
and Nuts.
Completed Rear Frame Assembly
