118

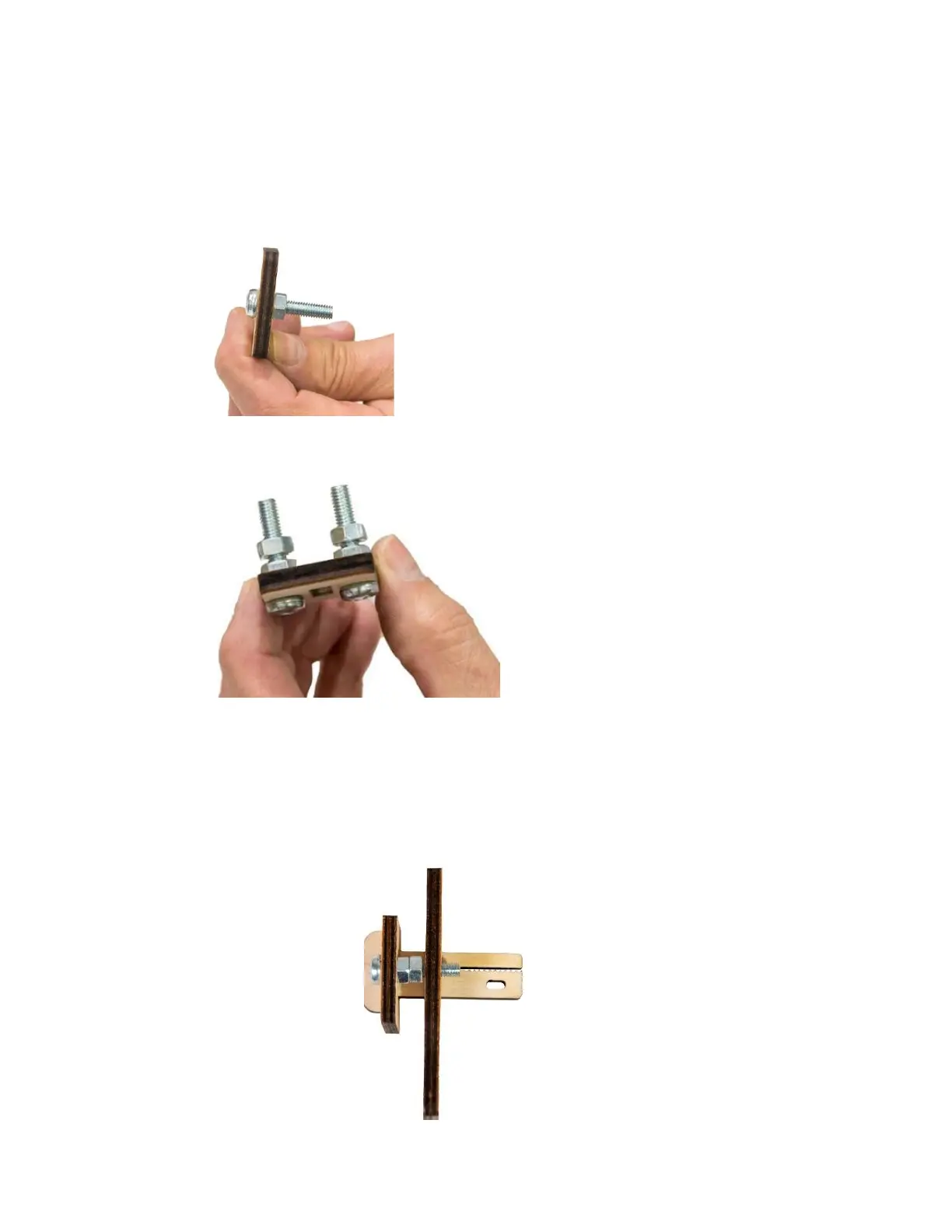

Step 7 Securing the X1 and X2 Belts
7a Insert two M6 x 30 Machine Screws through the Belt
Adjustment Plate (X11) and secure with a M6 Nut.
7b Add one M6 Nut to each Machine Screw as shown.
7c Insert the Long Belt Retainer (X10) through the Belt
Adjusting Plate into the Rail Stop (X3) as shown.
To Next Page
