BobsCNC Evolution Series - Page 120

119

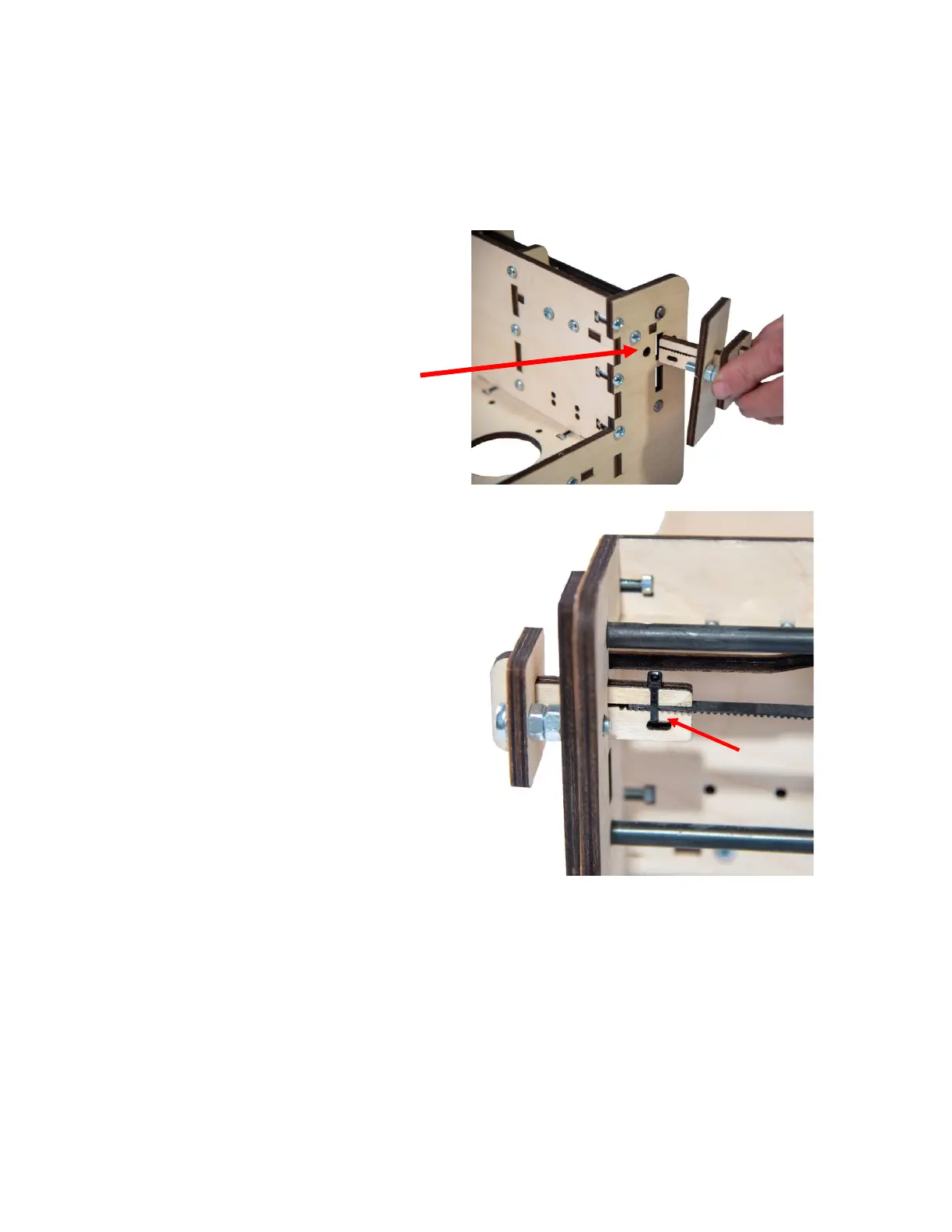

7d Insert the Belt Tightening Assembly into the upper
slot of the X Assembly as shown.
7e Insert the end of
the Belt into the
Belt Retainer. Be
sure to seat the
Belt completely in
the Retainer as
shown and secure
with a Zip Tie.
7f Repeat the steps for the remaining X belt.
Zip Tie
At the front of the
machine be sure
to insert in the
upper slot.
