Step 8 Attaching the Y Carriage Assembly and Y Axis GT2 Belt

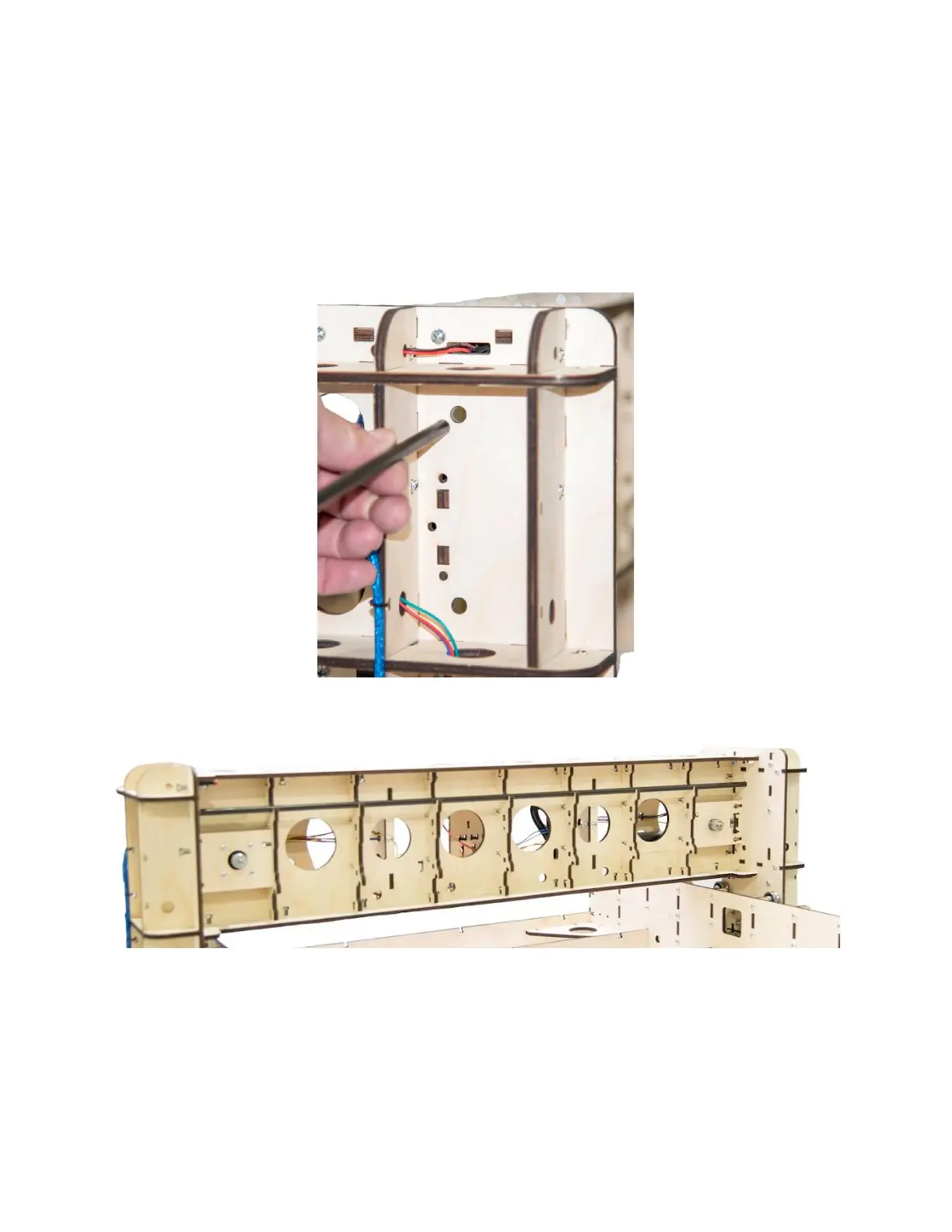

8a Insert the upper Y Axis Stress Proof Steel Rail into the
Gantry Side and carefully thread the Rail through the
upper Rail Supports and into opposite Gantry Side as
shown.
