8b Cut one of the GT2 Belts to a length of 56 1/2 inches.

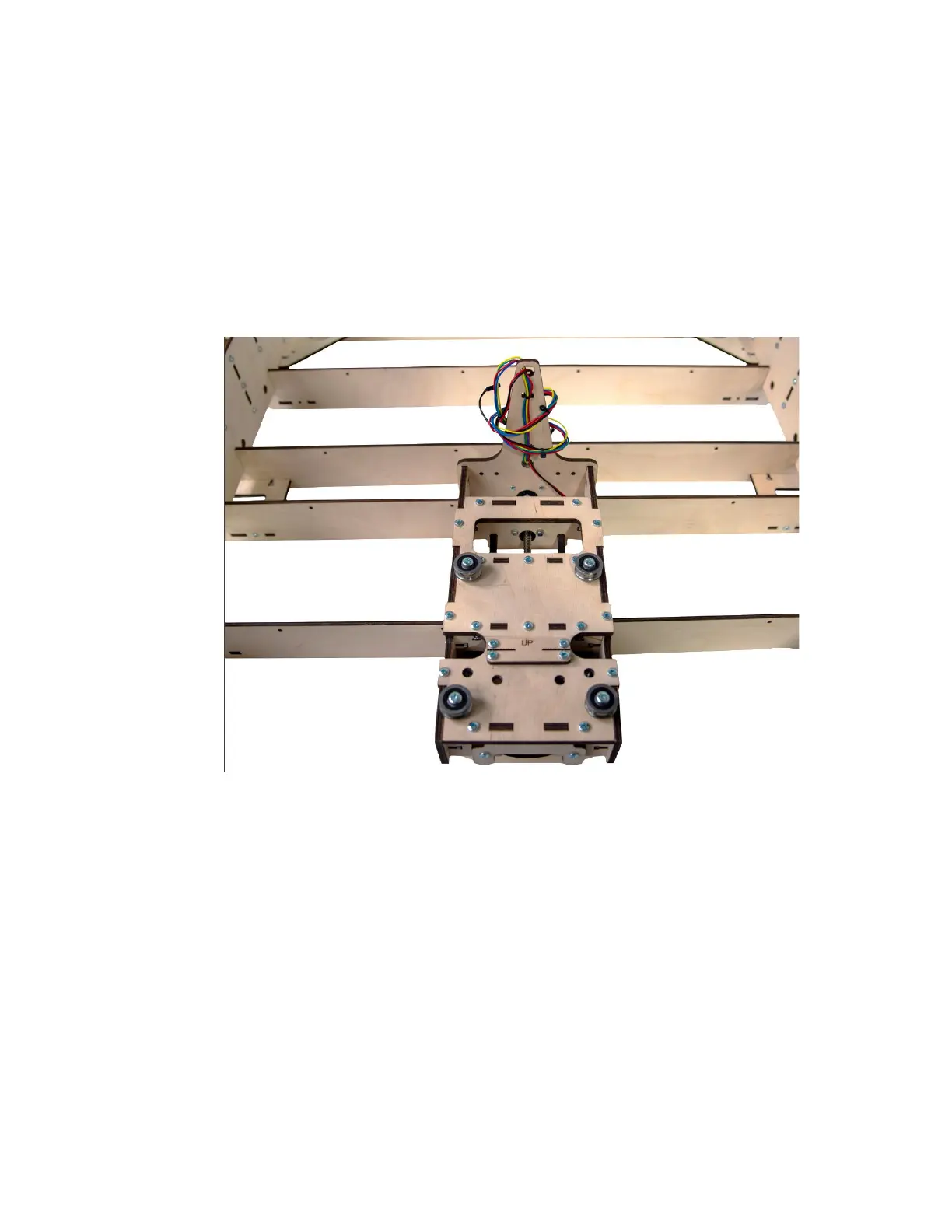

8c Lay the Y Carriage Assembly on the X Frame
Assembly and insert the ends of the Y Axis Belt into
the Belt Retainer making certain the Belt is not
twisted.
