122

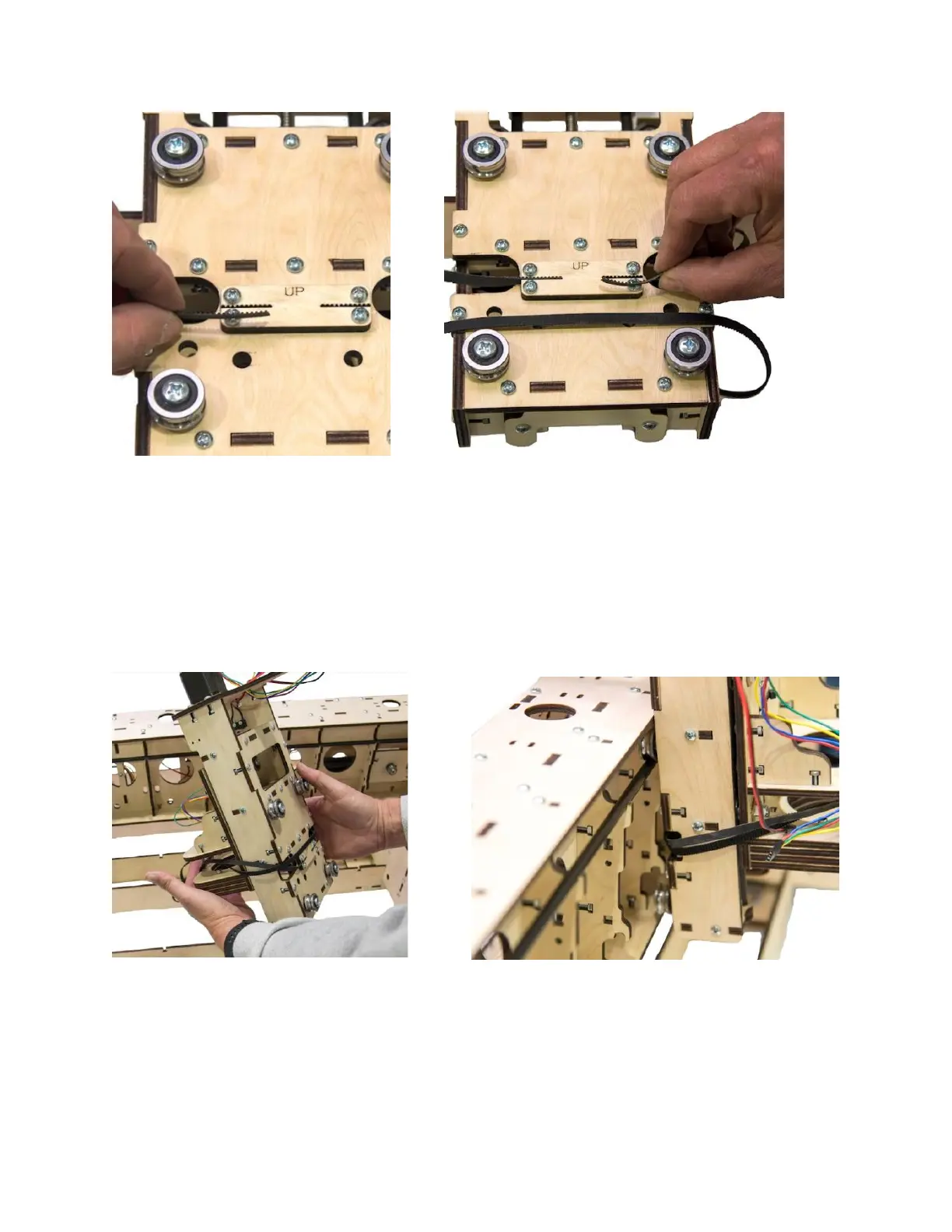

8d Carefully loop the Belt around the Y Carriage
Assembly, making sure the ends remain secure in the
Y Belt Retainer. Then hang the upper Bearings of the
Y Carriage Assembly onto the upper Y Rail as shown,
being careful to keep the Belt between the upper and
lower Bearings.
8e With the Belt secure, insert the lower Y Rail through
the Gantry Side, through the lower Rail Supports, over
